Vortex Diamondback 4-12x40

Vortex Diamondback 4-12x40

Vortex Diamondback 4-12x40

Pitajte za cijenu

Končanica

Vrijeme otpreme

Slanje za 1 mjesec ili više

Mogućnost povrata

15 dana

Pomoć oko dostave

Odaberite zemlju dostave i pružatelja dostave

Vaša odabrana lokacija bit će spremljena i dok pregledavate druge proizvode. Prilikom završetka kupnje moći ćete birati između više vrsta plaćanja.

Vraćanje kupljene robe Dostava i slanje Korištenje garancije

Korisnička pomoć

TREBATE POMOČ?

Naš iskusni tim spreman vam je pomoći kroz cijeli proces, od kupnje do korištenja proizvoda. Ako imate pitanja, molimo vas da nas kontaktirate.

Kontaktirajte nas

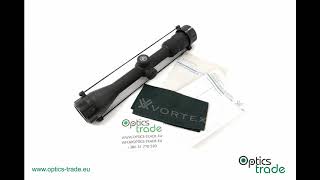

Vortex Diamondback 4-12x40 Opis proizvoda

The Diamondback with the most magnification of the range, the 4-12x40 is an impressive tool for medium to long range shooting. Initially meant for smaller calibers, all durability tests showed that it will withstand anything, even the largest calibers, as well as all environmental impacts it might encounter out there. The lenses on the scope are also coated for protection as well as for anti-reflection purposes, and are large enough to let through comfortable amounts of light. The image will always be sharp and crisp with the high quality lenses and the adjustable, fast focus eyepiece. The SFP set reticle will retain its excellent size at all magnifications, making fast and accurately placed shoots easy at any magnification, from medium or short range with the 4x and up to the longer ranges with the maximum, 12x magnification while using the Dead-hold BDC reticle.

Advanced Features

The single piece, aircraft aluminum tube will withstand the kick of any caliber, and is made for durability. It’s hard anodized for protection against the elements. The anodizing is made in matte finish to prevent light reflection for better concealment of the shooter. The lenses are multi-coated to prevent scratches, fingerprints and stains and the coating will repel water and grease drops as well. The whole scope is sealed and watertight, and the Argon purging of the interior will prevent any fogging on the internal lenses.

Reticle Illumination

The Diamondback series of scopes does not come with reticle illumination. They are made for hunting and shooting at daylight and the reticle options are chosen with that in mind. The scopes are made with rather large exit lenses in regards to the magnification options, which will let in enough light for comfortable shooting at any distance with the right scope option.

Configuration Options

This turrets come with caps for extra protection while on the move. They are easily re-indexed and resettable. The parallax is fixed, at 91 meters.

The scope comes in two reticle variants, wither the crude yet simple and fine V-Plex cross-hairs or the plain Dead-hold BDC that comes with a nice BDC system. In either case, the turrets have ¼ MOA adjustment graduation and have an impressive 60 MOA travel with both windage and elevation.

Warranty Information

All Vortex scopes come with a VIP warranty, which means that if anything goes wrong the Company will cover your scope. Your scope will be either repaired or replaced if it becomes defective, without any costs for you. You can also read more about our warranty policy here.

Mounting Options

The Vortex Diamondback 4-12x40 has a 25,4mm central tube and need appropriate rings for mounting.

Opća svojstva

Proizvođač	Vortex
Serija optičkih ciljnika	Vortex Diamondback
Izrađeno u	Filipini
Jamstvo	10 godina
SKU	DBK-04-BDCc

Optička svojstva

Varijabilno povećanje	Da
Min. povećanje	4.00 x
Max. povećanje	12.00 x
Promjer leće	40.00 mm
Min. promjer izlazne zjenice	3.30 mm
Max. promjer izlazne zjenice	6.80 mm
Min. vidno polje	3.80 m/100m
Max. vidno polje	10.80 m/100m
Min. udaljenost oka	79.00 mm
Max. udaljenost oka	86.00 mm
Brzi fokus	Yes

Djelovanje kupola

Podešavanje končanice na klik	7mm/100m - 1/4MOA
Tip kupole	Capped
Zero Stop	No
Broj okretaja kupole	MT - Multi Turn
Podešavanje končanice po visini	17.44 mrad
Podešavanje končanice po visini (MOA)	60.00 MOA
Podešavanje končanice po smijeri	17.44 mrad
Podešavanje končanice po smijeri (MOA)	60.00 MOA
Pomak po okretaju kupole	15 MOA - 43.5 cm

Obilježja končanice

Pozicija končanice	2. žarišna ravnina
Osvjetljenje končanice	Ne
Boja osvjetljenja	-
Osvjetljenje za dnevnu uporabu	Ne
Automatsko isključivanje	No

Paralaksa

Postavka paralakse	90m
Korekcija paralakse	Ne

Fizička svojstva

Dužina	305.00 mm
Težina	422.00 g
Punjen sa	Argon
Premazi leća	Multicoated
Promjer cijevi	25.4 mm
Vrsta montažne šinje	No
Dužina za montažu	142.00 mm
Promjer objektiva	45.7 mm
Promjer okulara	40.6 mm

Posebne značajke

Otpornost na vodu	Da
Otpornost na vlaženje	Yes
Otporno na udarce	Da
Posebna obilježja	Brzi fokus, Otpornost na rošenje, Otpornost na udarce, Otpornost na vodu, Varijabilno povećanje, Više premaza - sve leće
Ugrađen daljinomjer	Ne
