Adapteri za nočne optike

Redukcijski prsteni

Redukcijski prsteni za Pulsar Krypton (M35x1.0)

Smartclip Reduction Ring for Pulsar Krypton

Smartclip Reduction Ring for Pulsar Krypton

(1 ocjene)

Vrijeme otpreme

Slanje - 4 do 7 dana

Mogućnost povrata

15 dana

Pomoć oko dostave

Odaberite zemlju dostave i pružatelja dostave

Vaša odabrana lokacija bit će spremljena i dok pregledavate druge proizvode. Prilikom završetka kupnje moći ćete birati između više vrsta plaćanja.

Vraćanje kupljene robe Dostava i slanje Korištenje garancije

Korisnička pomoć

TREBATE POMOČ?

Naš iskusni tim spreman vam je pomoći kroz cijeli proces, od kupnje do korištenja proizvoda. Ako imate pitanja, molimo vas da nas kontaktirate.

Kontaktirajte nas

Smartclip Reduction Ring for Pulsar Krypton Opis proizvoda

About Smartclip

Smartclip is a Slovenian company known for its manufacture of adapters for clip-on devices, noted for their robust construction and superior finish. The adapters feature a distinctive lever that closes inward toward the adapter body, unlike many competitors' adapters where the lever shifts from the rear (loose) to the front (fixed). Hunters often detach the clip-on from the scope to swiftly scan the area. In the dark, particularly when excited by the sounds of nearby wildlife, there's a risk of quickly bringing the device close to the face, potentially poking the eye or surrounding skin with the lever in the loose position. Ludwig Dvojmoč, the company’s founder, developed the unique lever design in response to several injuries caused by traditional lever mechanisms, effectively eliminating the risk of such mishaps.

Ludwig Dvojmoč has experience working with well-known companies in the sports optics industry, such as Zeiss and Aimpoint. He played a pivotal role in establishing the Slovenian chapter of the International Practical Shooting Confederation (IPSC) and contributed to the amendment of several rules in the competition overall.

What is a reducing ring/converter?

Adapters that serve as a basis for clip-on mounting feature a M52x0.75 thread on one side and a riflescope objective attachment mechanism on the other. If you wish to mount a clip-on with any other thread/bayonet on your riflescope, you have two options. You can either purchase a one-piece solution, which has limited size options, or a two-piece adapter. The two-piece adapter consists of a M52x0.75 thread adapter combined with a suitable reducing ring or converter.

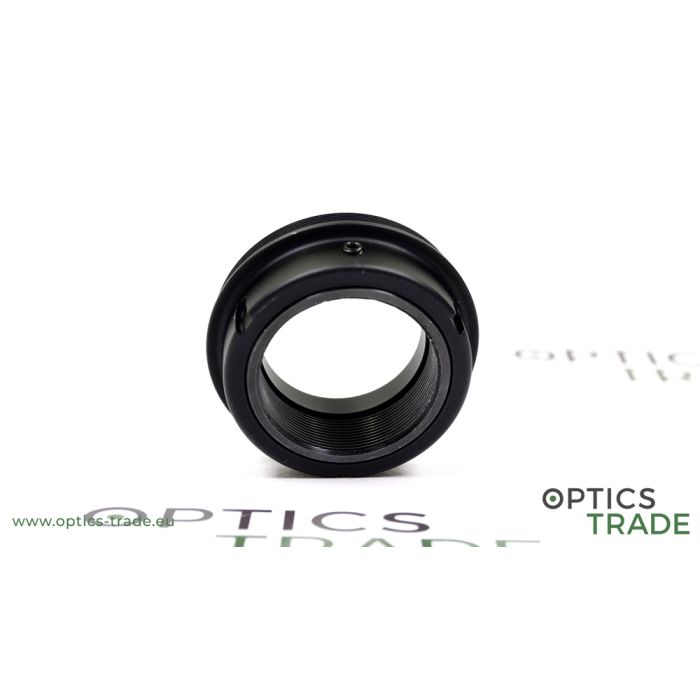

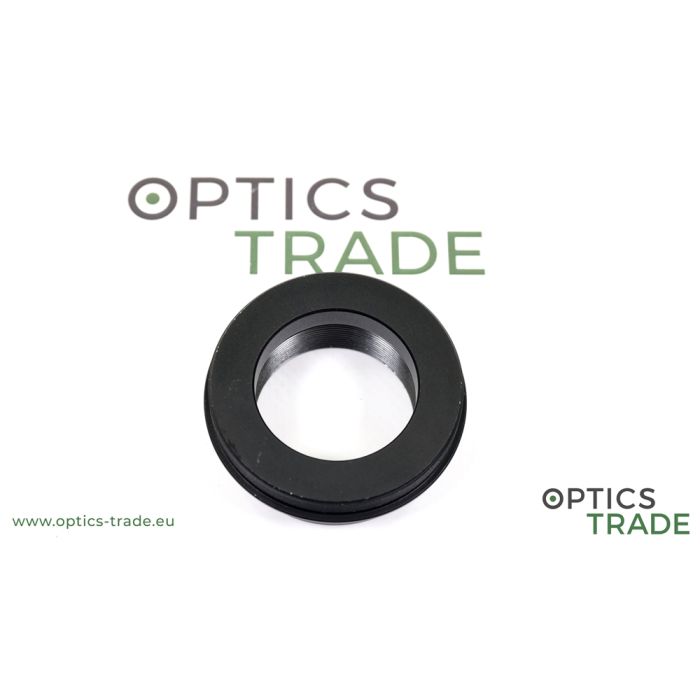

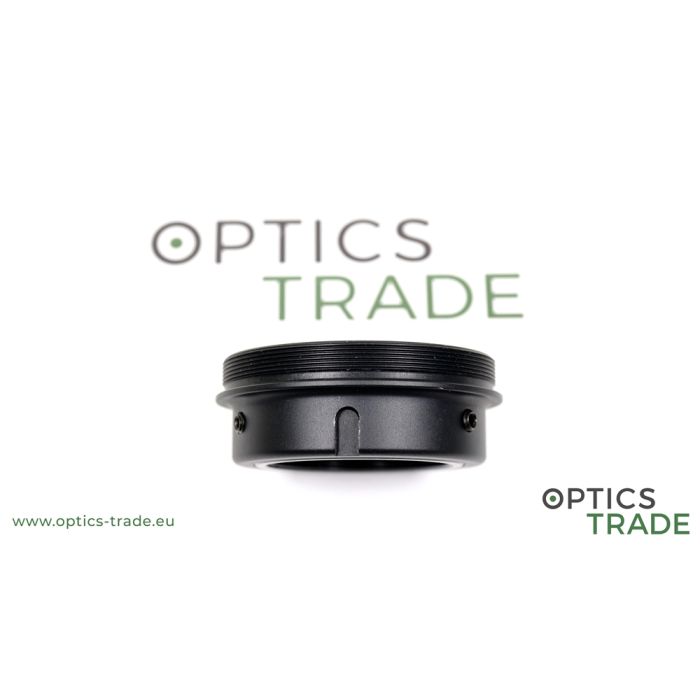

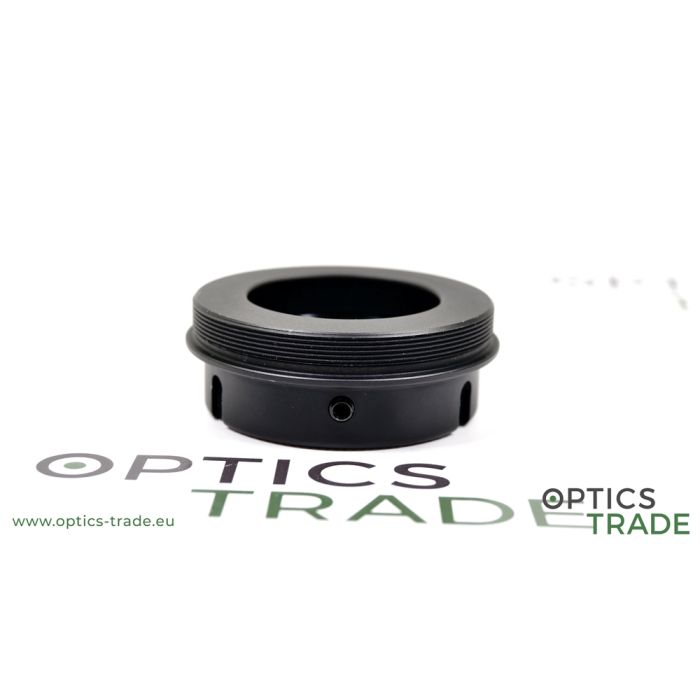

About the Smartclip converter for Pulsar Krypton (M35x1.0)

The Smartclip converter for Pulsar Krypton (M35x1.0) features an M52x0.75 thread for attachment to the AS adapter on one side and a thread for connection to the Pulsar Krypton mounting standard (M35x1.0) on the other.

This converter, in conjunction with the AS adapter, forms a two-part system for mounting devices with the Pulsar Krypton mounting standard (M35x1.0) on a riflescope.

Devices that share the Pulsar Krypton mounting standard (M35x1.0)

Mounting instructions

Mounting the reducing ring on the adapter

Align the AS adapter with the M52x0.75 thread on the reducing ring. Carefully thread the adapter onto the reducing ring until it is fully tightened. Use the provided wrench to securely fix it in place.

Mounting a device with the Pulsar Krypton mounting standard (M35x1.0) on the reducing ring

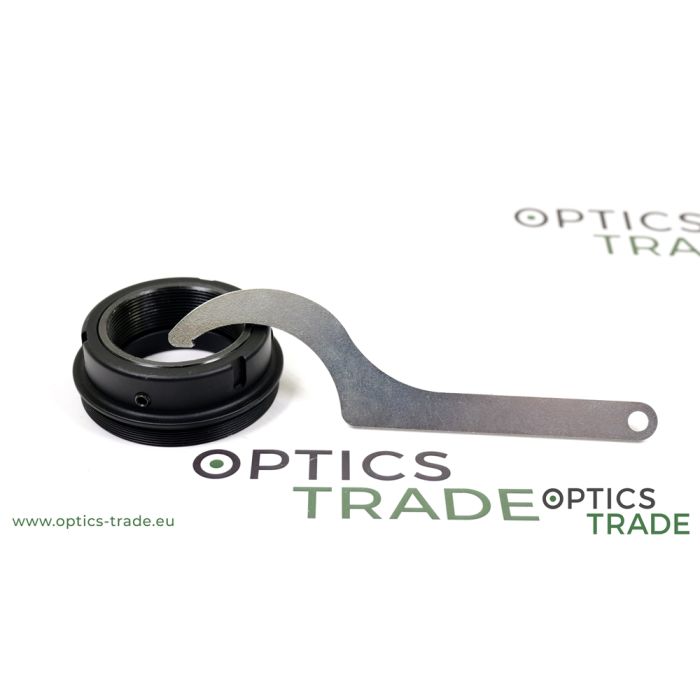

Thread the counter-nut, which comes with the reducing ring, onto the Pulsar Krypton mounting thread (M35x1.0) of the clip-on until it reaches the end. Position the reducing ring to align its M35x1.0 thread with the thread on the clip-on. Carefully screw the reducing ring onto the clip-on's thread, stopping just short of fully threading it. Prior to fully tightening the device onto the thread, utilize the counter-nut to adjust the adapter's positioning, ensuring the lever remains easily accessible when the device is mounted on the clip-on.

Opća svojstva

Proizvođač	Smartclip
Serija opreme	Smartclip Accessories
Izrađeno u	Slovenija
Proizvodi se od	2020
Jamstvo	2 godini
SKU	SMART RRPK

Fizička svojstva

Težina	50.00 g
Materijal	Aluminij
Dodaci za	Termički dodaci
Boja	Crna

Characteristics

Suitable for Front Compatibility	Pulsar Krypton Mounting Standard (M35x0.1)
Suitable for Rear Compatibility	Dedal Mounting Standard (M52x0.75)

Najčešća pitanja (Q&A)

Trebate li pomoć? Jeste li sigurni da je ovo pravi proizvod za vas? Ne oklijevajte - postavite pitanje našoj ekipi, koja je tu da vam pomogne oko pitanja o proizvodu.

Bok, pokušavam pronaći proizvođača smartclip-a da saznam nešto, ali možda ti možeš pomoći. Tražim navojni adapter za swarovski x5i koji će prihvatiti pulsar fn455s. Puno hvala, Alex

Hi, I'm trying to find the smartclip manufacturer to find something out but maybe you can help. I'm looking for a screw on adapter for a swarovski x5i that will accept a pulsar fn455s. Many thanks, Alex

od Alex

Dragi Alex,

hvala što ste nas kontaktirali.

Provjerite željeni adapter na stranici ispod.

https://www.optics-trade.eu/hr/smartclip-adapter-p.html

Ako imate dodatnih pitanja ili nedoumica, ne ustručavajte se kontaktirati nas izravno na [email protected]. Ovdje smo da vam pomognemo.

Lijepi pozdrav,

Dear Alex,

thank you for contacting us.

Please check the desired adapter on the page below.

https://www.optics-trade.eu/en/smartclip-adapter-p.html

If you have any further questions or concerns, please do not hesitate to contact us directly at [email protected]. We are here to help.

Kind Regards,

od Optics Trade team

Imam Krypton s originalnim nosačem. Nisam bio baš zadovoljan njime i sada sam na terenu izgubio plastični prsten između nosača i nišana. Čak i s ovim plastičnim prstenom nije mi se svidjelo. Swarovski je 50 mm. Koji nosač trebam kupiti od vas za svoj Pulsar?

I have a Krypton with original mount. Was not so happy with it and I have now in field lost the plastic ring between mount & scope. Even with this plastic ring I did not like the fit. The Swarovski is 50mm. What mount should I buy from you to my Pulsar?

od Johan

Poštovani gospodine,

hvala što ste nas kontaktirali.

Kako biste montirali Pulsar Krypton FXG50 na svoj Swarovski nišan s lećom od 50 mm, potrebni su vam sljedeći proizvodi:

- Smartclip adapter - AS (Veličina: 56 mm)

- Smartclip Reduction Ring za Pulsar Kripton

Zahvaljujemo na razumijevanju.

Ako trebate bilo kakve dodatne informacije, nemojte se ustručavati ponovno nas kontaktirati.

Lijepi pozdrav

Dear Sir,

thank you for contacting us.

In order to mount Pulsar Krypton FXG50 to your Swarovski riflescope with a 50mm lens you need to following products:

- Smartclip Adapter - AS (Size: 56mm)

- Smartclip Reduction Ring for Pulsar Krypton

Thank you for your understanding.

If you will need any additional information please do not hesitate to contact us again.

Kind Regards

od Optics Trade team

Otkrio sam da adapter Smartclip za moj Krypton odgovara i ispravno se poravnava s mojim Z8i bez korištenja redukcijskog prstena (kupio sam oba od vas). Hoće li biti u redu koristiti Krypton na taj način?

I have found that the Smartclip adaptor for my Krypton fits and aligns correctly to my Z8i without using the reducing ring, (I purchased both of them from you) will it be okay to use the Krypton like that please ?

od DAVID

Poštovani gospodine,

hvala što ste nas kontaktirali.

Molimo vas da nam pošaljete nekoliko fotografija adaptera i načina na koji je montiran na uređaj kako bismo potvrdili ovu stvar. Možete nas kontaktirati na [email protected]. Imajte na umu da navoj na uređaju ne odgovara navoju na adapteru Smartclip, zbog čega je potreban redukcijski prsten za transformaciju navoja uređaja u navoj adaptera.

Zahvaljujemo na razumijevanju.

Ako trebate bilo kakve dodatne informacije, nemojte se ustručavati ponovno nas kontaktirati.

Lijepi pozdrav

Dear Sir,

thank you for contacting us.

We would kindly like to ask you to send us a few photos of the adapter and how it is mounted on the device in order to confirm this matter. You can contact us at [email protected]. Please note that the thread on the device does not match the thread on the Smartclip adapter that is why the reduction ring is needed to transform the thread of the device to the thread of the adapter.

Thank you for your understanding.

If you will need any additional information please do not hesitate to contact us again.

Kind Regards

od Optics Trade team

Želim da mi odgovorite na tri pitanja. 1/ Ako imam optiku od 40 mm i također od 50 mm, koji je minimalni razmak između nišana na cijevi puške potreban za pametnu kopču za Krypton termalni dodatak jer jedna od mojih pušaka ima samo oko 3 mm između njih, druga je oko 5 mm. mm. 2/ Ako želim od vas kupiti različite veličine, moram vam dati specifičnu marku opsega ili samo vanjski promjer. 3/ možete li centralizirati termalni zaslon slike tako da se pojavljuje u sredini optike kada gledate kroz njega. Sve najbolje Simone.

Sorry three questions that I would like you to answer. 1/ If I have a 40mm and also a 50mm optic what’s the minimum gap between the scope on rifle barrel needed for the smart clip for Krypton thermal add on unit as one of my rifles only has about 3mm between them, the other is around 5 mm. 2/ If I want to purchase the different sizes from you do I need to give you the specific make of scope or just give you the outside diameter. 3/ can you centralise the thermal picture screen so it appears in the middle of the optic when looking through. All the best Simon.

od Simon

Poštovani gospodine,

hvala što ste nas kontaktirali.

Minimalni razmak između objektiva i cijevi puške je 4 mm, no postoji i ultra-tanko izdanje Smartclip adaptera kojem je potrebno samo približno 3 mm slobodnog prostora da bi se montirao Pulsar Krypton. Ako želite kupiti različite veličine, trebate odabrati istu veličinu kao što je promjer vašeg objektiva na nišanu. Također, Smartclip omogućuje montažu clip-on uređaja što ravnije na nišan i centralizirate prikaz uređaja s optičkom linijom nišana (nuliranje) uz ugrađenu funkciju u samom uređaju. Ovom funkcijom podešavate X i Y os zaslona u uređaju.

Zahvaljujemo na razumijevanju.

Ako trebate bilo kakve dodatne informacije, nemojte se ustručavati ponovno nas kontaktirati.

Lijepi pozdrav

Dear Sir,

thank you for contacting us.

The minimum gap between the objective and the barrel of the rifle is 4mm however there is also an ultra-slim edition of the Smartclip adapter which only needs approximately 3mm of clearance in order to mount the Pulsar Krypton. If you want to purchase different sizes you need to select the same size as it is your objective diameter on your riflescope. Also, the Smartclip allows mounting a clip-on device as straight as possible on the riflescope and you centralize the display of the device with the riflescopes' optical line (zeroing) with the inbuilt function in the device itself. With this function, you adjust the X and Y axis of the display in the device.

Thank you for your understanding.

If you will need any additional information please do not hesitate to contact us again.

Kind Regards

od Optics Trade team

Ima li adapter Smartclip za Pulsar Krypton mogućnost centraliziranja zaslona Krypton u pogledu kroz nišan, poput Pulsar PSP?

Does the Smartclip adaptor for Pulsar Krypton have the ability to centralise the Krypton screen in the view through the rifle scope, like the Pulsar PSP please ?

od David

Trenutno su Smartclip redukcijski prstenovi za Krypton jedinice fiksni, no u nastavku godine Smartclip će vjerojatno proizvoditi i prilagodljivu verziju. Rusan trenutno ima oboje dostupno.

Currently, Smartclip reduction rings for Krypton units are fixed, however, in the continuation of the year, Smartclip will probably also produce the adjustable version. Rusan currently has both available.

od Optics Trade team

Pozdrav, imam pitanje o Rusan i Smartclip adapterima za Krypton XG50. Može li se monokular 5x30B koristiti s instaliranim ovim adapterima ili ih je potrebno ukloniti? Mogu li se niti Rusan i Smartclip zamijeniti? Srdačan pozdrav,

Hello, I have a question about both Rusan and Smartclip adapters for The Krypton XG50. Can the monocular 5x30B be used with these adapters installed or do they have to be removed? Are threads interchangeable between Rusan and Smartclip? Best regards,

od Stefan

Monokular 5x30 B može se koristiti dok su ovi redukcijski prstenovi na uređaju Krypton. Niti su doista međusobno zamjenjive.

The 5x30 B monocular can be used while these reduction rings are on the Krypton device. The threads indeed are interchangeable.

od Optics Trade team

Može li novi pametni reduktor kopči za Pulsa Krypton prilagoditi prikaz zaslona tako da bude u središtu dnevnog prikaza?

Is the new smart clip reducer for the Pulsa Krypton able to adjust the screen view so it is in the centre of the day scope view ?

od Alf

To je točno.

That is correct.

od Optics Trade team

Pozdrav, kupio sam Pulsar kripton i želim ga koristiti na 2 različite puške. jedan s nišanom od 56 (62 mm izvana) i jedan s nišanom od 50 (58 mm izvana) često koristim obje puške pa želim rješenje za jednostavno prebacivanje između 2 nišana. I provjerite je li položaj metka u redu. Koristio sam Dipol DN34 pro 6 godina i prebacivanje između 2 nišana nikada nije utjecalo na moje gađanje. Ovo želim ponovno postići s Kryptonom. Savjetovali su me da kupim 2 različita smartclip adaptera A i 2 smartclip redukcijska prstena za pulsar kripton. Možete li mi savjetovati je li ovo dobro rješenje? Radujem se vašem odgovoru, srdačan pozdrav Michiel

Hello, i have bought a Pulsar krypton and want to use it on 2 different rifles. one with a 56 scope ( 62mm outside) and one with a 50 scope (58 mm outside) scope I use both rifles often so i want a solution to swith easy between the 2 scopes. And make sure that the bullet placement is ok. I used a Dipol DN34 pro for 6 years and the switching between 2 scopes never effected my shooting. This i want to achieve again with the Krypton I was advised to buy 2 different smartclip adapters A and 2 smartclip reduction rings for the pulsar krypton can you advise if this a good solution? Looking forward to your response best regards Michiel

od Michiel

Najbolje rješenje za vas je dovršiti Smartclip adaptere koji imaju redukcijske prstene koji su uvijek jednako postavljeni. Na taj način ćete se suočiti s minimalnim ili nultim odstupanjima prilikom snimanja.

The best solution for you is to have to complete Smartclip adapters which have reduction rings that are always set the same. This way you will face minimal or zero tolerances when shooting.

od Optics Trade team

Ime

Question

Send me an email when answer is posted

I want to subscribe to Optics Trade newsletter

I am interested in:

Lov

Taktičko i sportsko streljaštvo

Promatranje ptica i prirode

Prilozi

Drag your file(s) here or click to browse

Only YouTube and Vimeo links are supported.

+ Add another link

Zašto odabrati Optics Trade?

Širok izbor proizvoda na zalihi
Podrška iskusnih stručnjaka
Vaše zadovoljstvo nam je na prvom mjestu

Recenzije & Preporuke

1 ocjene

5 zvjezdica 1

4 zvjezdice 0

3 zvjezdice 0

2 zvjezdice 0

1 zvjezdica 0

Imate več iskustvo sa tim proizvodom?
Drago bi nam bilo da ocijenite ovaj proizvod:

Ocijenite proizvod

How do you rate this product?

Ocjena

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Drag your file(s) here or click to browse

Only YouTube and Vimeo links are supported.

+ Add another link

Dobro osmišljen sjajan komad opreme Well engineered great bit of kit

Htio sam montirati Pulsar Krypton FXG50 na Swarovski Z8 s objektivom od 56 mm. Kupio sam ovaj redukcijski prsten i Smartclip adapter veličine 62 mm. Rezultat je odličan, puno bolji od standardnog Pulsar adaptera, tanji je i puno bolje projektiran

I wanted to mount a Pulsar Krypton FXG50 on to a Swarovski Z8 with a 56mm objective lens. I bought this reduction ring and the Smartclip adapter in size 62mm. The result is excellent much better than the standard Pulsar adaptor, it’s slimmer and much better engineered

Review by Tazz

Posted on 12. 01. 2024.
