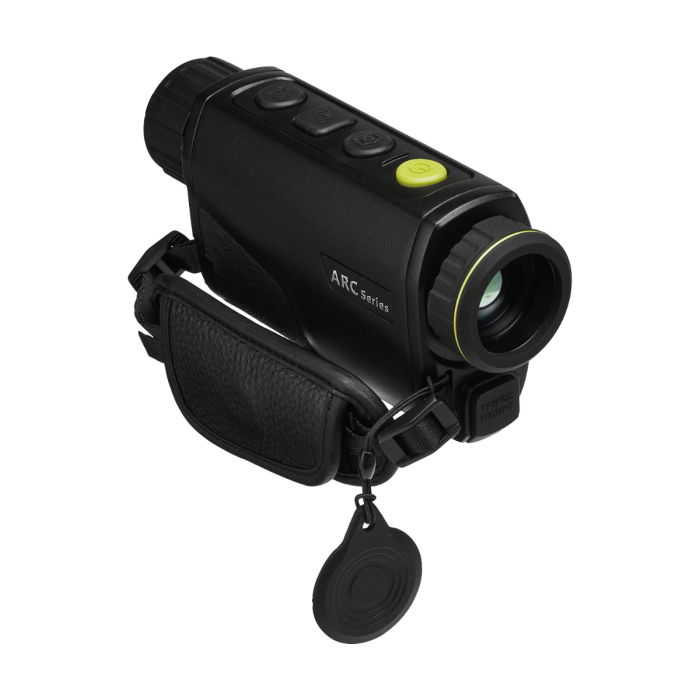

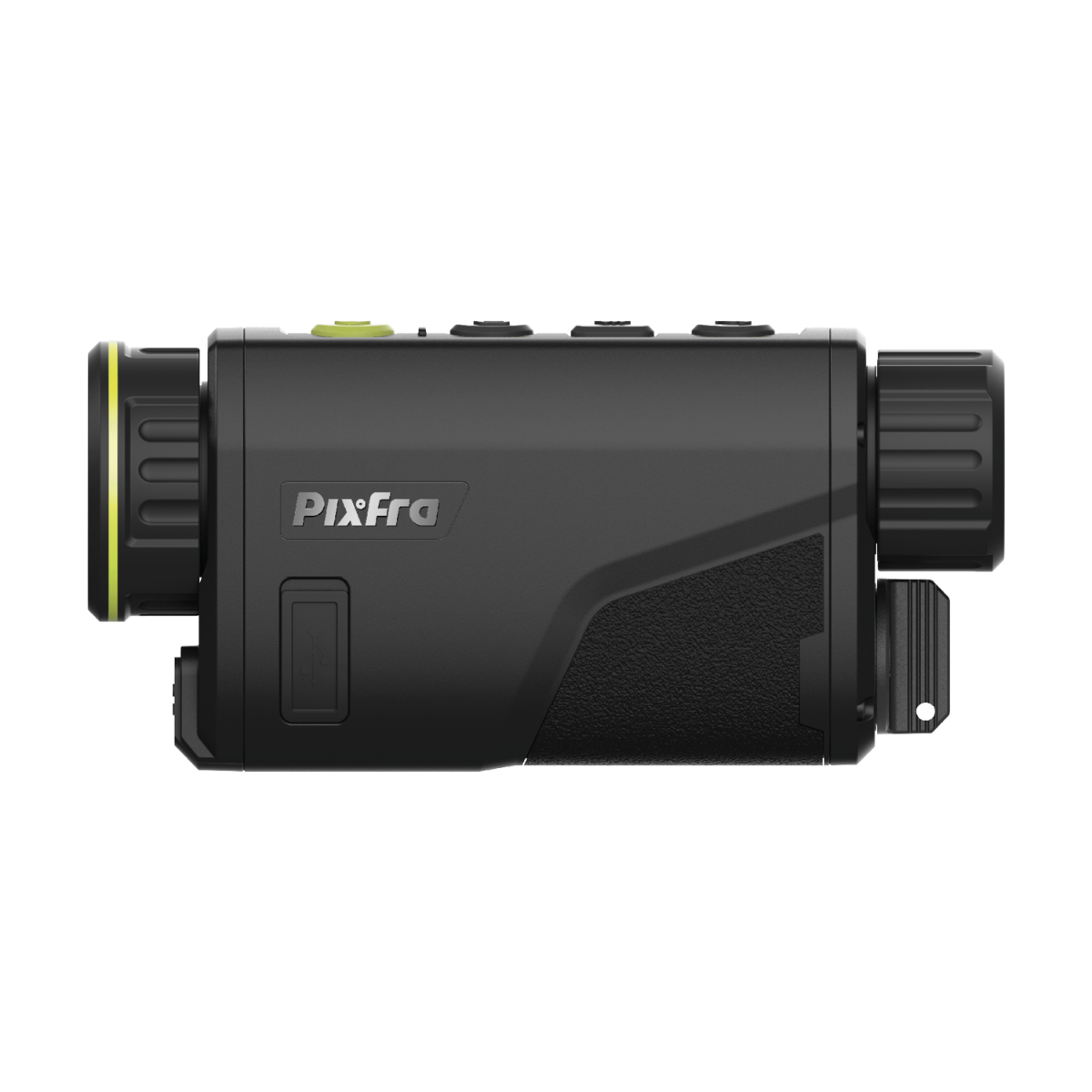

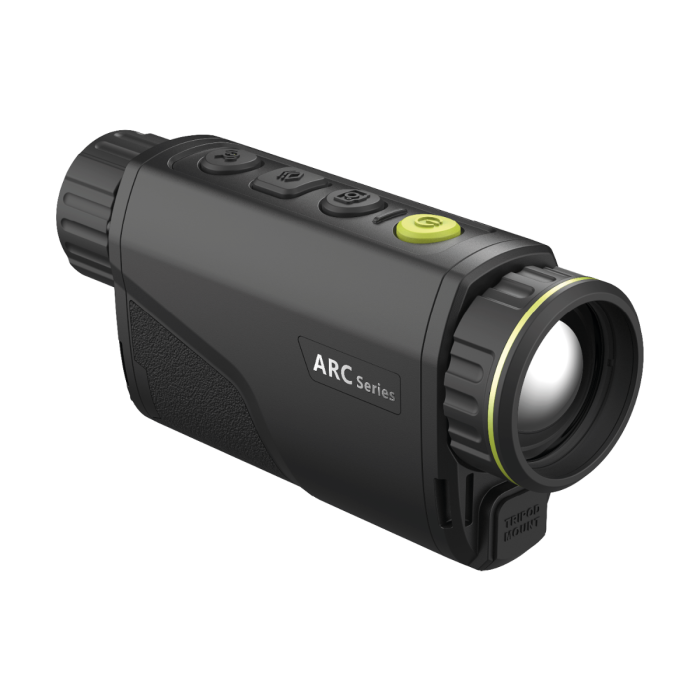

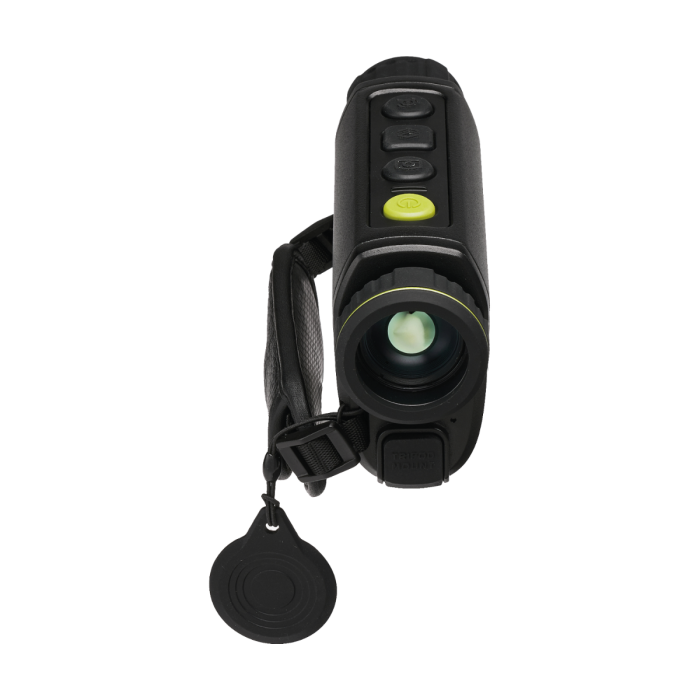

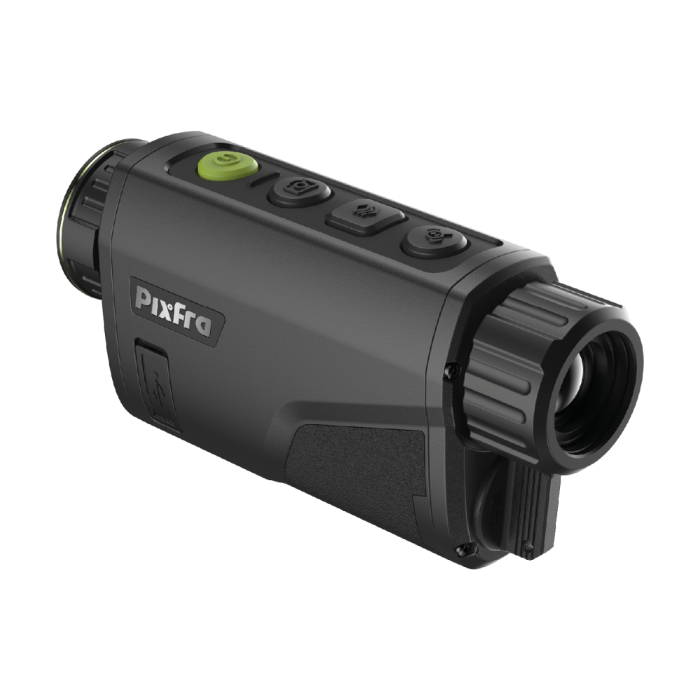

Pixfra Arc A419

The Pixfra Arc A419 is a compact, high-performance thermal monocular built for precision and portability. It features a sensitive 384×288 VOx uncooled detector with a pixel pitch of 12μm and a low NETD of ≤20 mK, ensuring excellent performance even in challenging environments. The 19 mm F1.0 lens provides sharp imaging at both short and long ranges, with a detection distance of up to 1,000 meters.

With its 2.1× optical magnification and digital zoom up to 8×, the A419 allows users to scan wide terrain and zoom in for detail. The field of view is 40.4 m × 32.3 m at 100 m, making it ideal for fast-paced tracking and surveillance. A high-resolution 1440×1080 OLED display delivers crisp thermal visuals, enhanced by six color palettes and onboard image optimization tools such as hotspot tracking and video distance measurement.

The Arc A419 also features video recording, snapshots, Wi-Fi hotspot connectivity, and internal 32 GB EMMC storage. It is powered by a replaceable 18650 Li-ion battery, offering up to 7.5 hours of continuous operation. Its rugged magnesium alloy housing is IP67-rated, ensuring reliable use in harsh weather or rugged terrain. Lightweight and ergonomically designed, it suits both left- and right-handed users.

About the Arc Series

The Pixfra Arc Series offers a lightweight and compact approach to thermal imaging, combining portability with high optical performance. Built for outdoor enthusiasts, hunters, and professionals, the Arc devices maintain durable construction, intuitive operation, and practical battery solutions. Each model provides crisp imaging, multiple viewing modes, and high-resolution OLED displays in a minimalist, travel-friendly format.

Key Features

• 384×288 VOx thermal sensor with 12 μm pixel pitch
• NETD ≤20 mK for fine thermal sensitivity
• 19 mm F1.0 lens with 2.1× magnification
• Field of view: 40.4 m × 32.3 m @ 100 m
• Detection range: up to 1,000 m
• Digital zoom: 1×, 2×, 4×, 8×
• 1440×1080 OLED screen with 6 color palettes
• Snapshot, video recording, Wi-Fi hotspot
• Hotspot tracking and video-based range measurement
• 32 GB built-in storage
• Manual focus with close focus distance of 2 m
• Replaceable 18650 battery with up to 7.5 h runtime
• USB-C charging with overvoltage protection
• IP67 waterproof and dustproof magnesium housing
• Lightweight: ≤345 g (without battery)

What's in the Box

• Pixfra Arc A419 Thermal Monocular
• Replaceable 18650 Battery
• USB Type-C Charging Cable
• Protective Case
• Quick Start Guide
• Lens Cleaning Cloth

About Pixfra

Pixfra is a thermal imaging brand specializing in advanced monoculars and observation tools for outdoor users, security personnel, and wildlife observers. A subsidiary of Dahua Technology, Pixfra integrates cutting-edge sensor design, rugged construction, and user-focused features to deliver reliable, high-value thermal optics across a range of applications.

Warranty

The Pixfra Arc A419 is backed by a 3-year manufacturer warranty, ensuring long-term support and peace of mind for users worldwide. Official service centers are available throughout the EU for technical assistance and repair.
