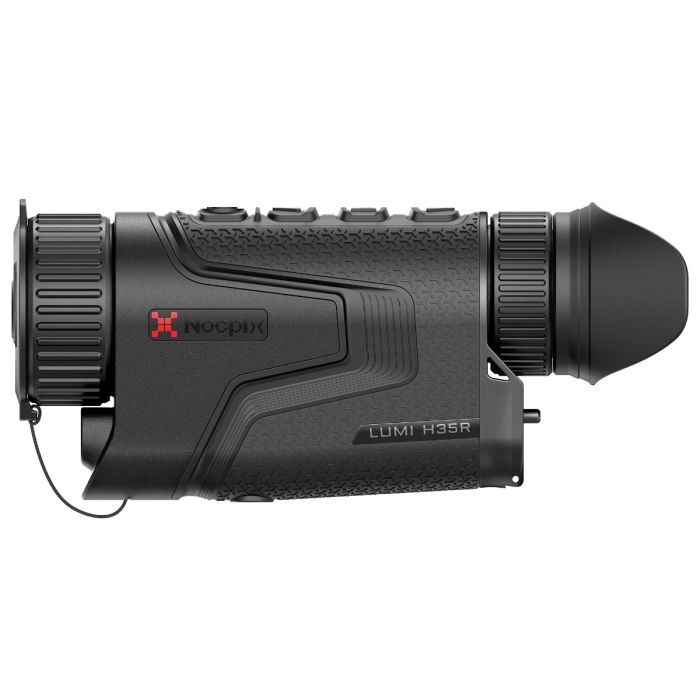

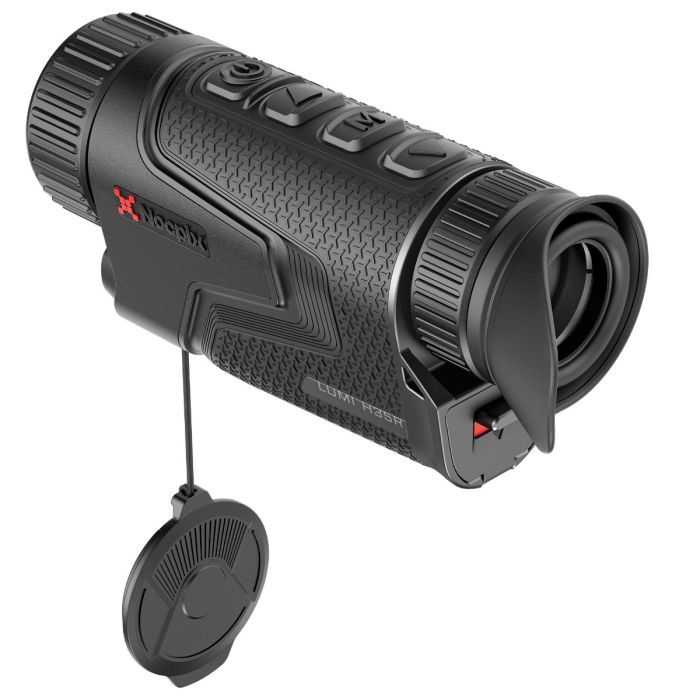

Nocpix Lumi LRF H35R

Nocpix LUMI LRF H35R Description

The Nocpix LUMI H35R LRF combines advanced sensor technology with rugged design, offering excellent thermal performance in a compact and user-friendly format. Featuring a 640×512 thermal sensor and a fast 35 mm F0.9 lens, it delivers crisp, high-contrast imaging even in low visibility. Its integrated Class 1 laser rangefinder adds reliable distance measurement up to 800 meters, making it ideal for hunting, observation, and tactical use.

About the LUMI Series

The LUMI series by Nocpix offers professional-grade thermal monoculars with intuitive controls, replaceable batteries, and advanced optics. Designed for practical field use, the LUMI models balance performance with portability, making them a solid choice for demanding outdoor users. All models come equipped with built-in recording, Wi-Fi support, and long-term service compatibility.

About the Model (LUMI H35R LRF)

The LUMI H35R LRF is equipped with a 640×512 VOx thermal sensor with a 12 μm pixel pitch and NETD of ≤18 mK. Its 35 mm F0.9 lens allows for target detection up to 1800 meters. The device features 2.5× base magnification and digital zoom up to 20×, displayed on a 1024×768 resolution AMOLED screen.

Its integrated Class 1 laser rangefinder can measure distances up to 800 meters. Powered by a replaceable 18650 battery, the device offers up to 4.5 hours of operation. The LUMI H35R also includes onboard video and photo recording, a microphone, USB charging, and a robust IP67-rated housing.

Key Features

• 640×512 VOx thermal sensor, 12 μm pixel pitch
• NETD ≤18 mK – sharp thermal contrast
• 35 mm F0.9 germanium lens
• Detection range up to 1800 m
• 2.5× optical magnification, digital zoom up to 20×
• 0.39″ AMOLED display with 1024×768 resolution
• Integrated Class 1 LRF (Laser Rangefinder) – up to 800 m
• Onboard video and photo recording
• Built-in microphone
• 32 GB internal memory
• Replaceable 18650 battery
• Up to 4.5 hours runtime at 22 °C
• USB charging support
• IP67 waterproof and dustproof
• Operating temperature: –20 °C to +50 °C
• Compact design – 147 × 47 × 74 mm, 385 g (with battery)

What’s in the Box

• Nocpix LUMI H35R LRF Thermal Monocular
• 1× 18650 rechargeable battery
• Battery charger
• USB charging cable
• Lens cleaning cloth
• Protective carrying pouch
• Quick start guide

Warranty

The Nocpix LUMI H35R LRF comes with a 3-year manufacturer’s warranty. Authorized European service centers provide support for maintenance and repairs, ensuring long-term functionality. Firmware updates are also available to keep your device up to date.
