MAKuick One-piece Mount, Tikka T3, Zeiss ZM / VM rail

Introduction

MAK is a German company, specialized in mounting solutions for optics. Their offer also includes riflescopes and red dot sights. MAK's products, made with topmost precision, are known for their high quality. To appease every need when it comes to mounting solutions, MAK has many series of mounts in their offer.

Tikkakoski factory, the owner of Tikka brand, was established in 1893 in Finland and started manufacturing components for guns in 1918. In 1983, Tikkakoski was merged into Sako. Today, Tikka is a combination of Sako's world-famous engineering, values of traditional gunsmith craftsmanship and features of modern-world rifles. Sako became a member of the Beretta group at the turn of the millennium. Since then, it has access to advanced production methods which further enable refining of renowned products.

About the rifle

Tikka T3 is a series of popular bolt-action rifles, available in a wide range of configurations (Hunter, Hunter Stainless, Varmint, Varmint Stainless, Forest, Lite, Lite Stainless etc.). Sako chambers Tikka T3 rifles for many calibers: .204 Ruger, .222 Rem., .223 Rem., .22-250 Rem., .243 Win., .25-06 Rem., .260 Rem., 6.5 Creedmoor, 6.5x55, .270 Win., .270 WSM,  7mm-08 Rem., 7mm Rem. Mag., 7x64, .308 Win., .30-06 Sprg., .300 WSM, .300 Win. Mag., 8x57 IS, .338 Federal, .338 Win. Mag. and 9.3x62. There are two locking lugs on the bolt. Barrel length is either 406 mm, 510 mm, 570 mm, 600 mm or 620 mm. In 2016, Tikka series was expanded – T3x was introduced to the public (a series of upgraded T3 models). All improved parts are compatible with the older T3 models. Tikka T3 has a 16.5mm dove-tail on the receiver, along with four mounting holes (two at the front and two at the rear), for mounting purposes. There is a recoil stop on the front mounting surface. The action is push-feed.

Rifles Tikka T3, 55, 65, 558, 590, 690 and Master have similar actions. This is why, for example, two-piece mounts made for Tikka T3 will fit rifles Tikka 55, 65, 558, 590, 690 and Master while one-piece mounts made for Tikka T3 will not fit rifles Tikka 55, 65, 558, 590, 690 and Master. These rifles do not have mounting surfaces with radiuses since they have a dove-tail on the receiver. Tikka rifles have a 16.5 mm dove-tail throughout the entire receiver length.

A: 22 mm
B: 82.2 mm
C: 22 mm
BHU: 0 mm
Fi: M3.5
R1: Prisma 16
R2: Prisma 16

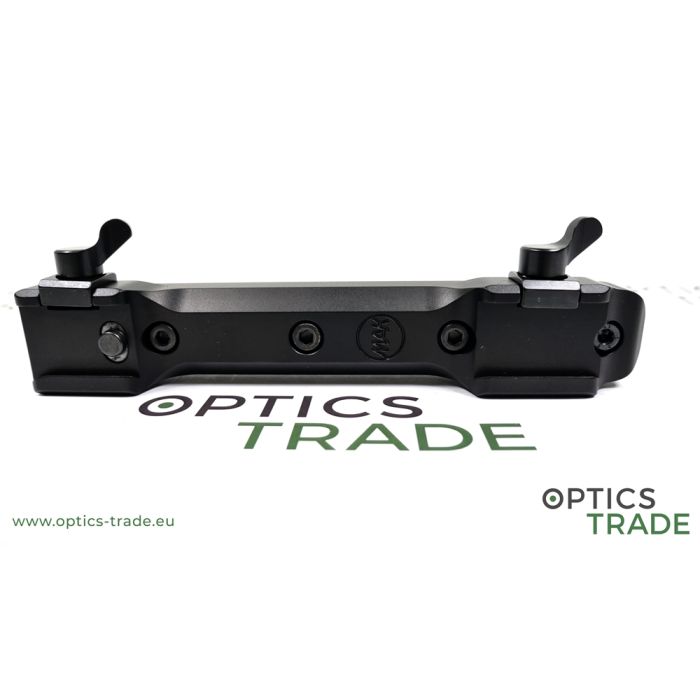

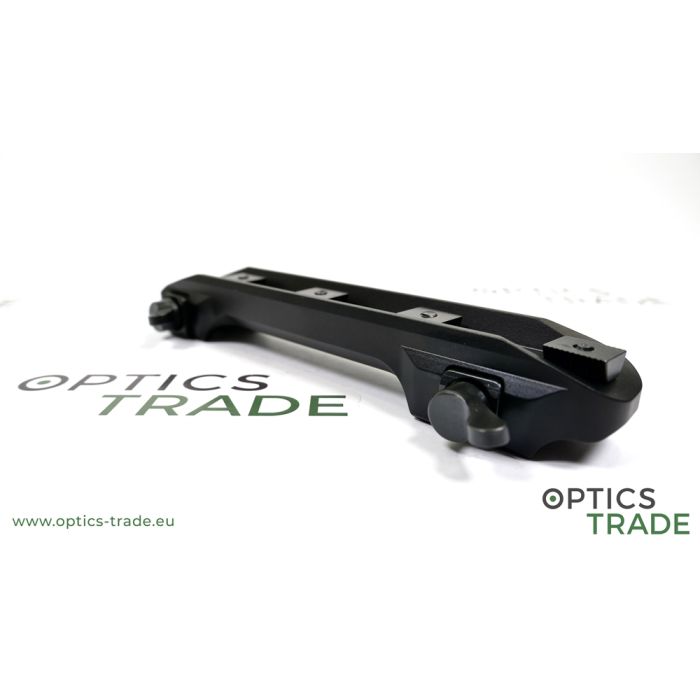

MAKuick one-piece

MAKuick mounts are robust and reliable. They offer a 100 % repeatability, meaning that the user can remove them and put them back onto the rifle without the need to re-zero. MAKuick mounts are designed so that they can withstand the recoil of even the most powerful calibers out there. They are lightweight because both the base and the rings are made from aluminum. The whole system that is in contact with the rifle (the clamping assembly) is made from steel. MAKuick is a versatile series of mounts – it allows mounting of all sorts of rings, all sorts of mounting rails (LM, ZM/VM, SR, Convex), different adapters that allow mounting of other devices such as ATN X-Sight; Pulsar Digisight, Apex, Trail; Fortuna devices etc. MAKuick mounts made for the mounting of riflescopes with a rail underneath are made of one part. Because of this, they are more robust, durable and reliable. For digital and thermal optical devices, the buyer has to pick a MAKuick base with four holes on which rings are usually put. Instead of the rings, the user mounts an adapter on top that works as a connector between the thermal optics and the MAKuick base. MAK makes one-piece MAKuick bases for the following rifles: CZ 527, CZ 550, Merkel KR 1, Merkel RX Helix – also fits on all Picatinny rails, Sauer 303, Sako 75, Sako 85 S, Sako 85 M, Tikka T3 and Blaser rifles. They also make a MAKuick base for break barrel rifles with a 12 mm dovetail and for break barrel rifles with a 14.5 mm dovetail (usually found on Czech break barrel rifles).

MAKuick one-piece rail mounts

In the MAKuick series, mounts for the following types of rails are currently produced: LM, ZM/VM, SR, and Convex. The BH height of the base is 12 mm. Mounting a riflescope with a rail underneath on the rifle is more simple than mounting with rings – the riflescope is automatically horizontally aligned with the rifle's barrel when mounted, no extra adjustments are necessary. The mount is made out of one part.

Mounting instructions

First, the user has to make sure that the rifle is fixed (it is advised that the rifle is put into a rifle holder). Once the mount is slid into the dove-tail grooves and fixed by rotating the levers for 180°, the lock screws have to be unscrewed. The user then adjusts the clamping force of the adjustment screws with a hex key so that they are tightened but not too tightened. The lock screws have to be re-tightened to complete the mounting procedure. The recommended tightening torque is 4–5 Nm.

Warranty

The product has a warranty period of 10 years.
