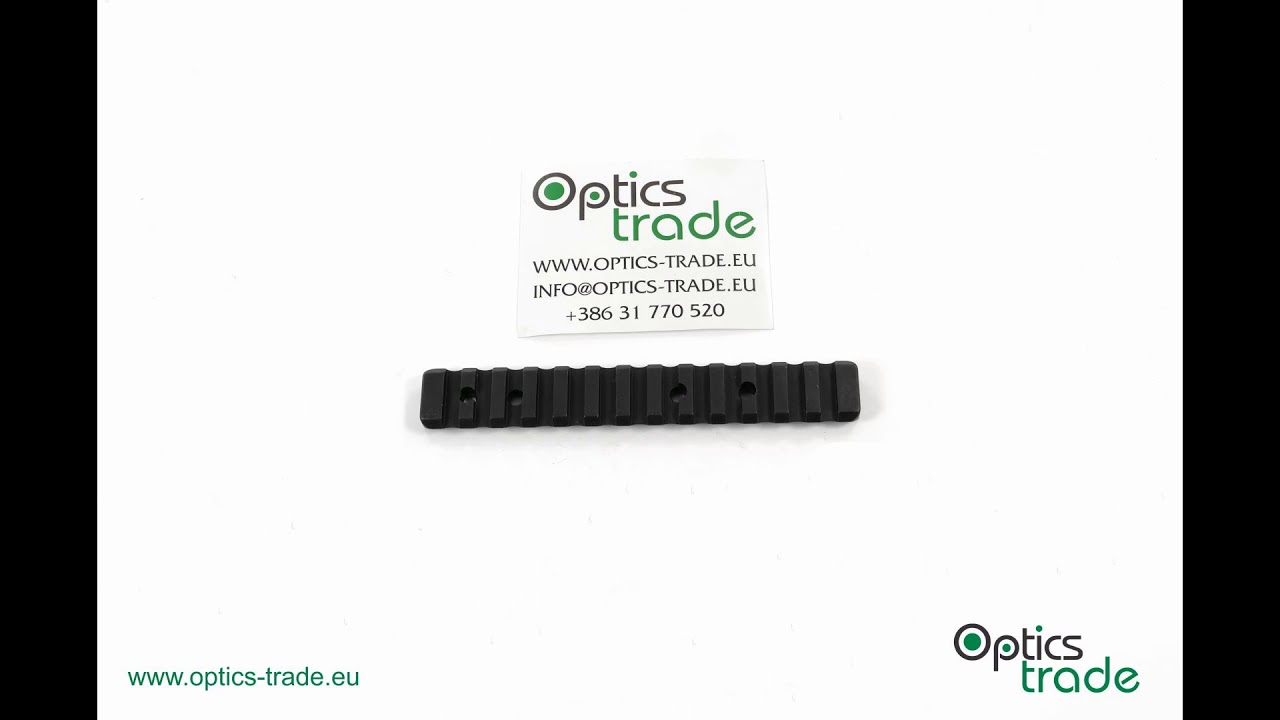

MAK Steel Picatinny Rail for Benelli Rafaello

Introduction

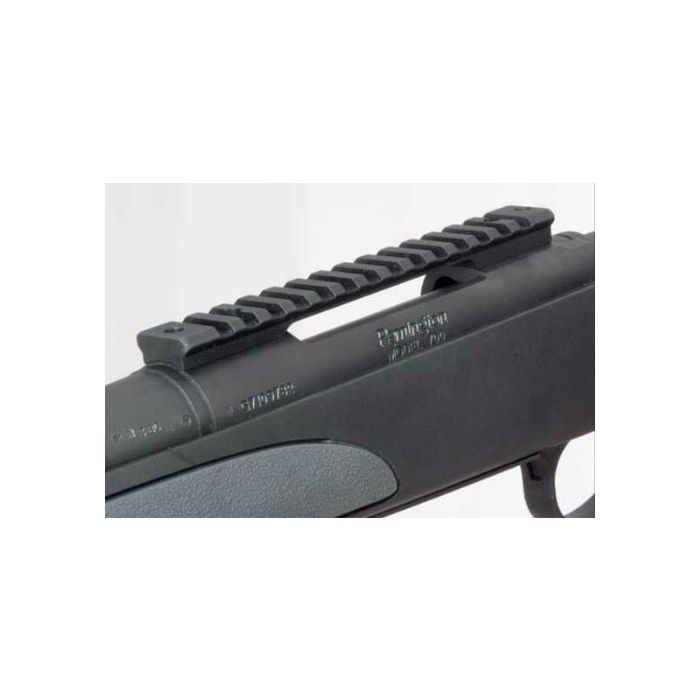

Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.

Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver's slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.

MAK is one of the biggest mount manufacturers in Germany. All of their Picatinny rails are manufactured from high-quality steel and are known for their mat finish that does not reflect light. The edges of the rails are wavy, adding to the high-quality appearance. MAK Picatinny rails lack a slot that would allow the user to use the Picatinny rail with sights.

About the rifle

Benelli Armi S.p.A. was formed in 1967 from a motorcycle business. Benelli brothers were passionate hunters as well as fine engineers – with the help of Bruno Civolani, they developed an extraordinary hunting shotgun that used a simple inertia driven mechanism in place of a conventional gas-operated system. Today, they are best known for producing shotguns for law enforcement, military, and civilians. Benelli M3 12 gauge, used by American SWAT teams, is perhaps their most famous firearm.

Benelli Raffaello, introduced in 1987, is a semi-automatic shotgun, based on the Benelli Super 90's technology. It is available in 12-3", 20-3", 28-2 ¾" and 28-3" gauge. Older models are called Benelli Raffaello Black Eagle – these were available with 53, 61, 66 or 71 cm barrels and a 76 mm chamber. All rifle versions have a ventilated barrel rib. There are no holes on the rifle's receiver – If the user wants to mount a scope on the rifle, a gunsmith has to drill the holes onto the receiver.

A: /
B: /
C: /
BHU: 0 mm
Fi: 4x0.5
R1: R18
R2: R18

Mounting instructions

Remove all the stains (grease, oil etc.) from the rifle's receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.

Warranty

The product has a warranty period of 10 years.
