INNOmount Picatinny rail for Tikka T1x

About Picatinny Rail

The Picatinny rail system is meticulously designed with slots spaced at exact intervals of 5.23 mm, ensuring both consistent and versatile use throughout its length. This precision allows for straightforward mounting and guarantees universal compatibility, ensuring that scopr mounts tailored for a Picatinny rail will seamlessly fit, irrespective of the manufacturer or date of production. Favored for its cost-effectiveness, robustness, and dependability, the Picatinny rail is increasingly popular among experts and military users, becoming the top choice in the scope mounts market in recent years.

The Picatinny framework marks a notable enhancement over the traditional Weaver standard. Unlike the Weaver system, which has only a limited number of slots, the Picatinny rail boasts continuous slots across its entirety, providing enhanced flexibility for positioning devices at any desired point. Additionally, the slots on a Weaver rail are slimmer, measuring 3.8 mm, which permits scope mounts made for Weaver rails to be used on a Picatinny rail. However, due to differences in the width of the recoil stoppers, scope mounts specifically designed for the Picatinny rail cannot be accommodated on Weaver rails. This level of compatibility and adaptability makes the Picatinny rail a superior option for a variety of mounting needs.

About the Innomount

Innomount is a German-based manufacturer specializing in high-quality scope mounting solutions, known for their precision engineering and innovative designs. With a strong focus on durability and reliability, Innomount products provide the perfect connection between firearms and sport optics. The company employs advanced 3D CAD development, rigorous analysis, and state-of-the-art production technologies to ensure exceptional performance.

Their product range includes quick-release mounts, fixed mounts, Picatinny rails, tactical mounts, and specialized solutions tailored to various shooting applications. Trusted by hunters, sport shooters, and tactical professionals worldwide, Innomount continues to set industry standards with its cutting-edge designs and commitment to quality.

About the Tikka

Tikka, originally known as Tikkakoski, was founded as a metal workshop in 1893 in Jyväskylä, Finland. It evolved to produce gun components by the end of World War I. Significant to firearm history, Tikka produced the Suomi KP/-31, highly effective in WWII. After cooperating on a prototype rifle series in 1981, Tikka was acquired by Sako. In 2009, Beretta Group's acquisition allowed access to advanced production methods, maintaining Tikka’s tradition of manually testing each rifle for assured quality.

About the Tikka T1x

The Tikka T1x rifle, available in the MTR and UPR versions, is designed with a rimfire configuration. Its stock is modular, with interchangeable pistol grips that allow adjustment of grip angles. This rimfire rifle includes a detachable 10-round magazine and is chambered in 22LR and 17HMR calibers. It features a 11mm flat dovetail for mounting scopes, supplemented with 4 holes for mounting purposes.

Calibres

Tikka T1x is chambered for:

• .22 LR
• .17HMR

Design of the Rail

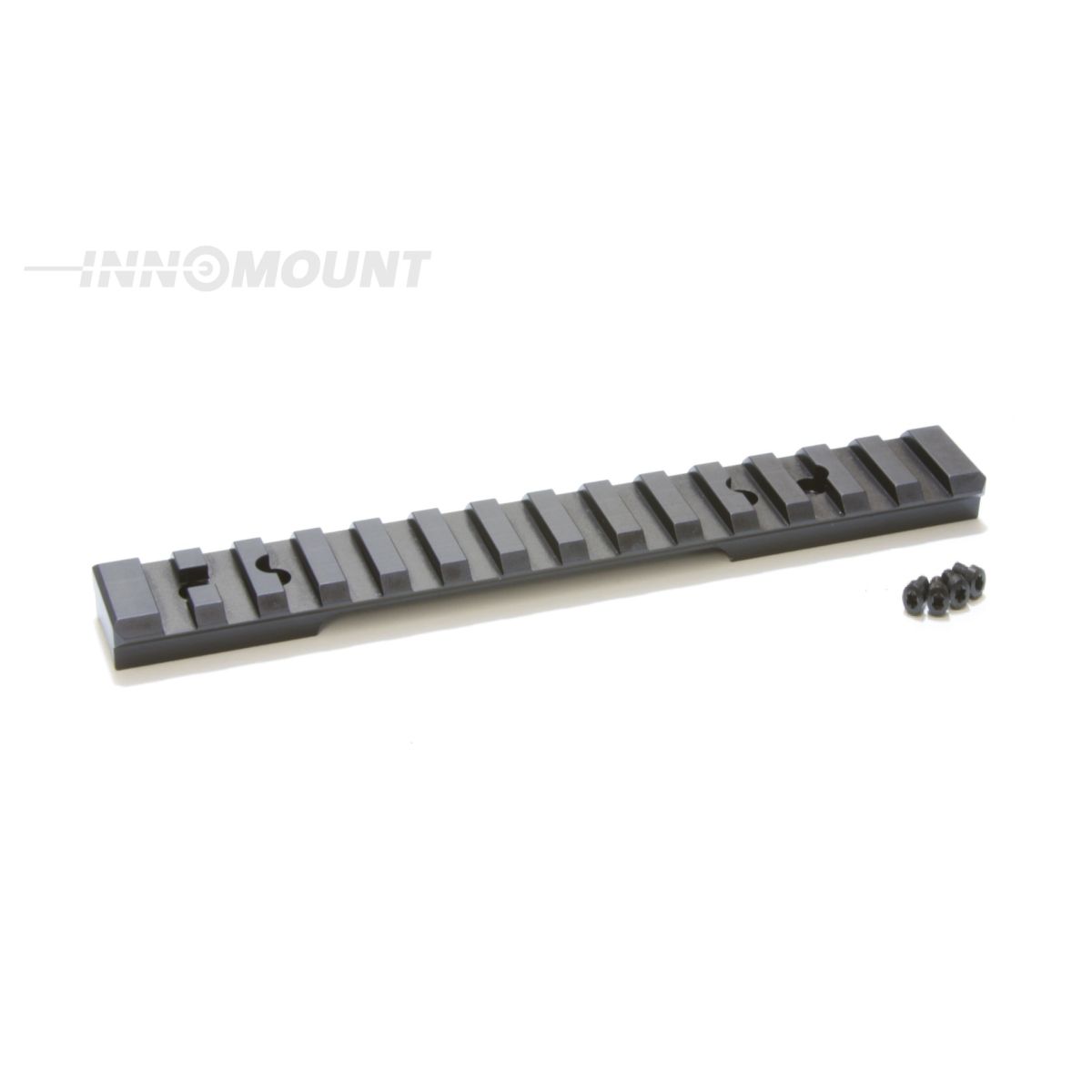

The INNOmount Picatinny rail for Tikka T1x is made from high-strength steel, providing greater durability and wear resistance than aluminum. Its solid construction ensures reliable performance, even with frequent use.

The rail has four mounting holes with 6-48 threading, allowing for secure attachment of various optics. It is fastened with four screws, ensuring stability and accuracy under recoil.

Designed for precision shooting and hunting, this rail offers a durable and practical solution for mounting optics.

Mounting Dimensions

• A=21.9mm
• B=63.8mm
• C=21.9mm
• R1=999mm
• R2=999mm
• BHU=0mm

Mounting Instructions

Clean the rifle's receiver thoroughly with a cleaning fluid, such as acetone, to remove all stains, grease, and oil. Once the surface is clean and dry, verify that the screws fit both the rail and the receiver holes. Before mounting the rail, apply a minimal amount of thread-locking fluid (278 or 648) to the screws, avoiding any contact with the mounting holes. Carefully clean any excess fluid around the rail using the cleaning fluid. Using a torque driver, tighten the screws to the appropriate torque (up to 3 Nm/26.5 in-lbs). If you require any mounting tools, you can find them on our Rifle Scope Mounting Tools page.

What's in the box?

Each package comes complete with one steel rail and 4 screws to securely attach the rail to your firearm.

Warranty

This product comes with a 10-year warranty.
