INNOmount Picatinny rail for FN Browning BAR

About Picatinny Rail

The Picatinny rail system is meticulously designed with slots spaced at exact intervals of 5.23 mm, ensuring both consistent and versatile use throughout its length. This precision allows for straightforward mounting and guarantees universal compatibility, ensuring that scopr mounts tailored for a Picatinny rail will seamlessly fit, irrespective of the manufacturer or date of production. Favored for its cost-effectiveness, robustness, and dependability, the Picatinny rail is increasingly popular among experts and military users, becoming the top choice in the scope mounts market in recent years.

The Picatinny framework marks a notable enhancement over the traditional Weaver standard. Unlike the Weaver system, which has only a limited number of slots, the Picatinny rail boasts continuous slots across its entirety, providing enhanced flexibility for positioning devices at any desired point. Additionally, the slots on a Weaver rail are slimmer, measuring 3.8 mm, which permits scope mounts made for Weaver rails to be used on a Picatinny rail. However, due to differences in the width of the recoil stoppers, scope mounts specifically designed for the Picatinny rail cannot be accommodated on Weaver rails. This level of compatibility and adaptability makes the Picatinny rail a superior option for a variety of mounting needs.

About the INNOmount

Innomount is a German-based manufacturer specializing in high-quality scope mounting solutions, known for their precision engineering and innovative designs. With a strong focus on durability and reliability, Innomount products provide the perfect connection between firearms and sport optics. The company employs advanced 3D CAD development, rigorous analysis, and state-of-the-art production technologies to ensure exceptional performance.

Their product range includes quick-release mounts, fixed mounts, Picatinny rails, tactical mounts, and specialized solutions tailored to various shooting applications. Trusted by hunters, sport shooters, and tactical professionals worldwide, Innomount continues to set industry standards with its cutting-edge designs and commitment to quality.

About the Browning Arms

Browning Arms Company was founded in 1880 by the prolific inventor John Moses Browning in Ogden, Utah. The company's innovative designs were produced by major manufacturers including Winchester, Colt, and Fabrique Nationale of Belgium. Known for a variety of firearms like the Colt Peacemaker and Browning automatic rifles, Browning also diversified into non-firearm products such as knives and clothing. In 1977, it was purchased by the Belgian firm Fabrique Nationale and remains influential in the firearms industry.

About the Rifle Browning BAR

The Browning BAR is a semi-automatic sporting rifle, developed by John Browning. This model was introduced as a redesign in 1966 and is known for its robust, piston-driven gas autoloading system. The BAR features a rotary-locking bolt head with seven locking lugs, a cross-bolt safety, and a single-stage trigger part of an easily removable trigger assembly. The rifle is designed with four holes for mounting purposes. Barrel lengths available are 508 mm (20-inch), 559 mm (22-inch), and 610 mm (24-inch)​​.

Variants

Browning BAR is available in the following variants:

• Browning BAR Safari
• Browning BAR Long Trac
• Browning BAR Short Trac
• Browning BAR Lightweight Stalker

Calibres

Browning BAR is chambered for the following calibers:

• .243 Win.
• .270 WSM
• 7mm Rem. Mag.
• .308 Win.
• .300 WSM
• .30-06 Spr.
• .338 Win. Mag.

Design of the Rail

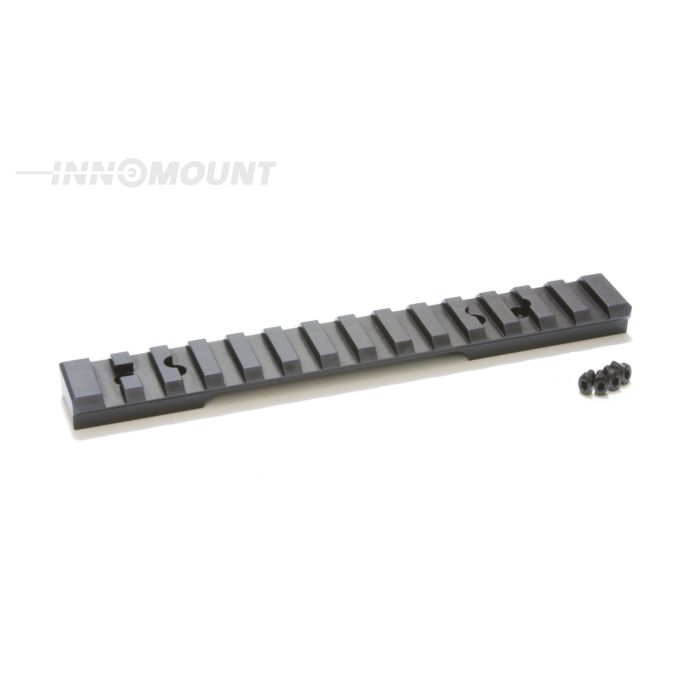

The INNOmount Picatinny rail for FN Browning BAR is made from high-strength steel, providing greater durability and wear resistance than aluminum. Its solid construction ensures reliable performance, even with frequent use.

The rail has four mounting holes with 6-48 threading, allowing for secure attachment of various optics. It is fastened with four screws, ensuring stability and accuracy under recoil.

Designed for precision shooting and hunting, this rail offers a durable and practical solution for mounting optics.

Mounting Dimensions

• A=12.7mm
• B=81mm
• C=12.7mm
• R1=18mm
• R2=18mm
• BHU=0mm

This rail can also be mounted on

Usually, a Picatinny rail can be mounted on multiple different rifles if they share the same mounting surface, which we commonly refer to as the mounting standard. The INNOmount Picatinny rail for FN Browning BAR can be mounted on the following rifles, which share the same mounting standard:

• FN Browning BPR
• FN Browning Acera
• Benelli R1
• Fabarm Iris
• FN Browning Argo
• FN Browning BAR MK2
• FN Browning BAR MK3
• FN Browning Maral
• FN Browning BLR LA
• FN Browning BLR Lightning LA
• Winchester SXR Vulcan

Mounting Instructions

Clean the rifle's receiver thoroughly with a cleaning fluid, such as acetone, to remove all stains, grease, and oil. Once the surface is clean and dry, verify that the screws fit both the rail and the receiver holes. Before mounting the rail, apply a minimal amount of thread-locking fluid (278 or 648) to the screws, avoiding any contact with the mounting holes. Carefully clean any excess fluid around the rail using the cleaning fluid. Using a torque driver, tighten the screws to the appropriate torque (up to 3 Nm/26.5 in-lbs). If you require any mounting tools, you can find them on our Rifle Scope Mounting Tools page.

What's in the box?

Each package comes complete with one steel rail and 4 screws to securely attach the rail to your firearm.

Warranty

This product comes with a 10-year warranty.
