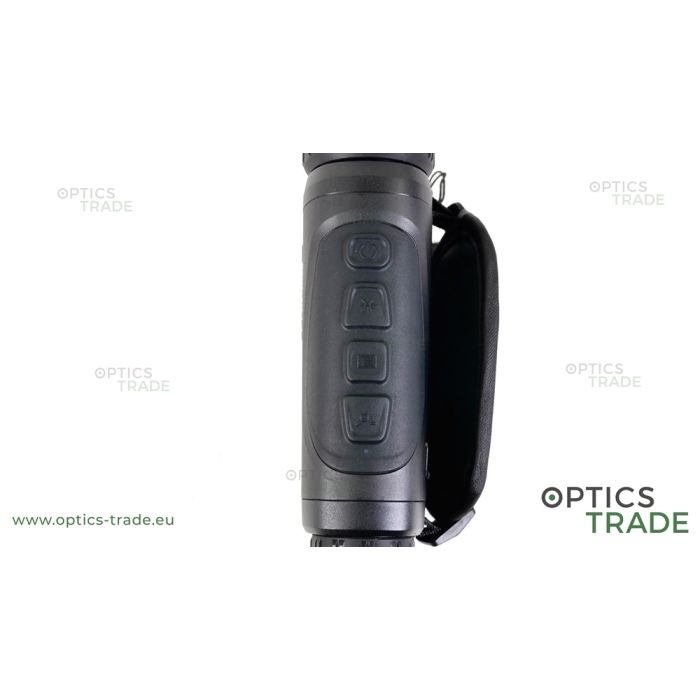

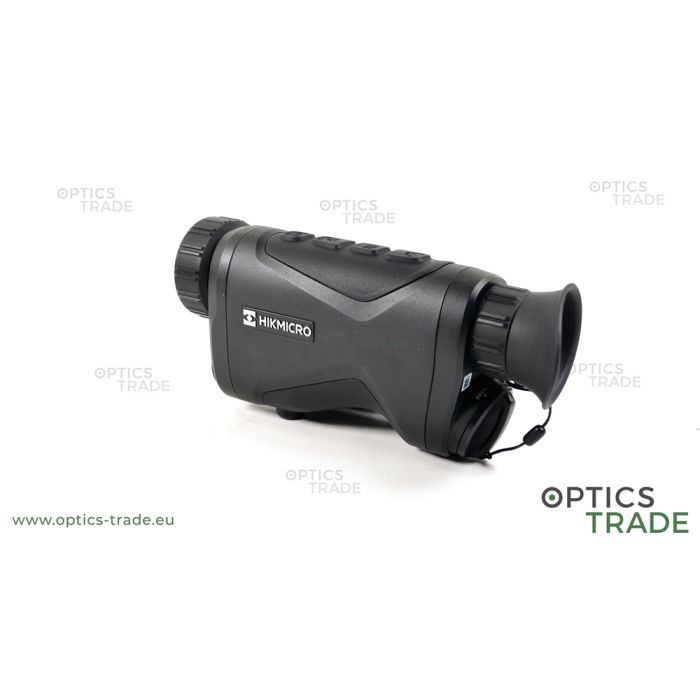

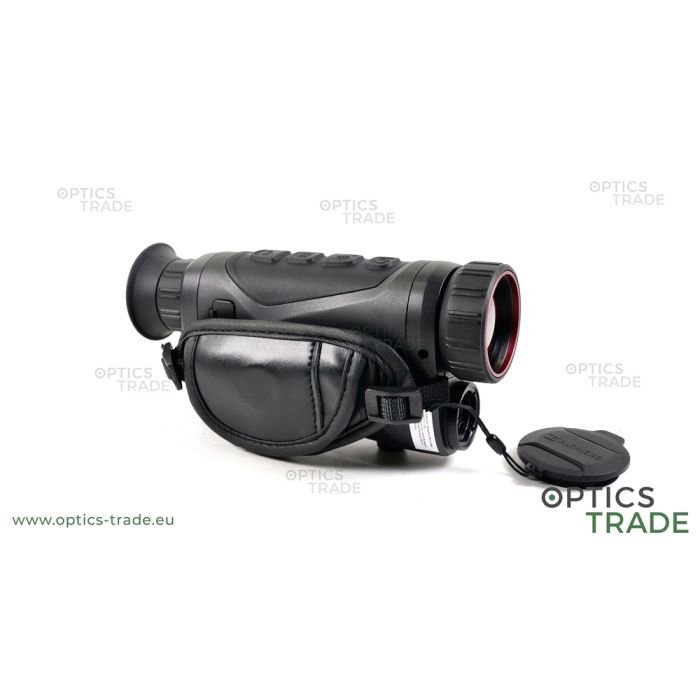

Hikmicro Condor CH35L Opis proizvoda

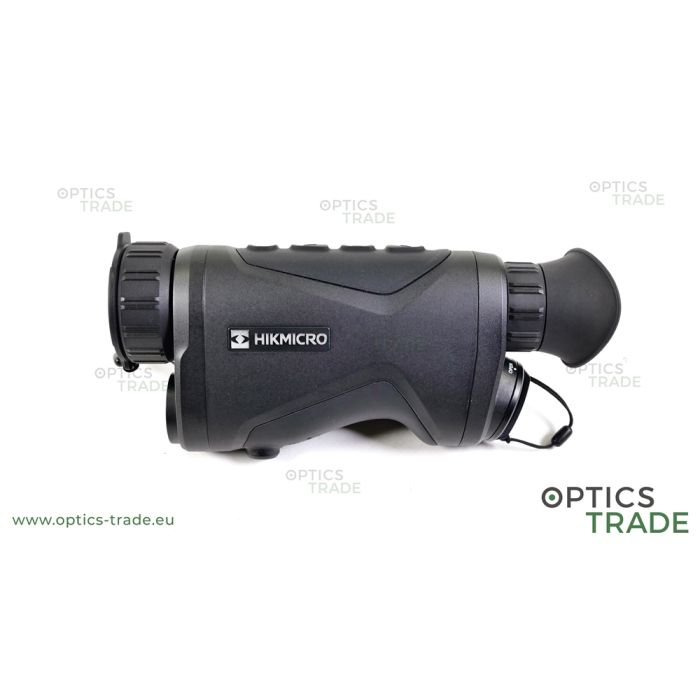

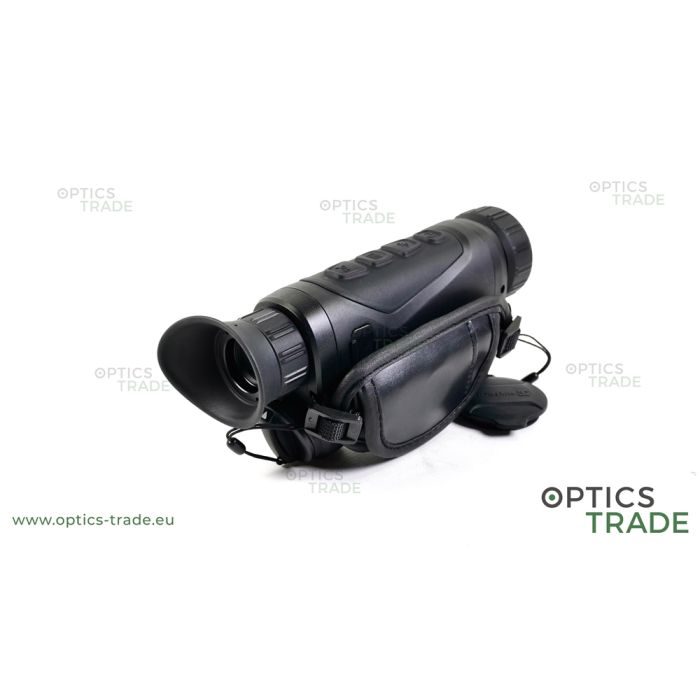

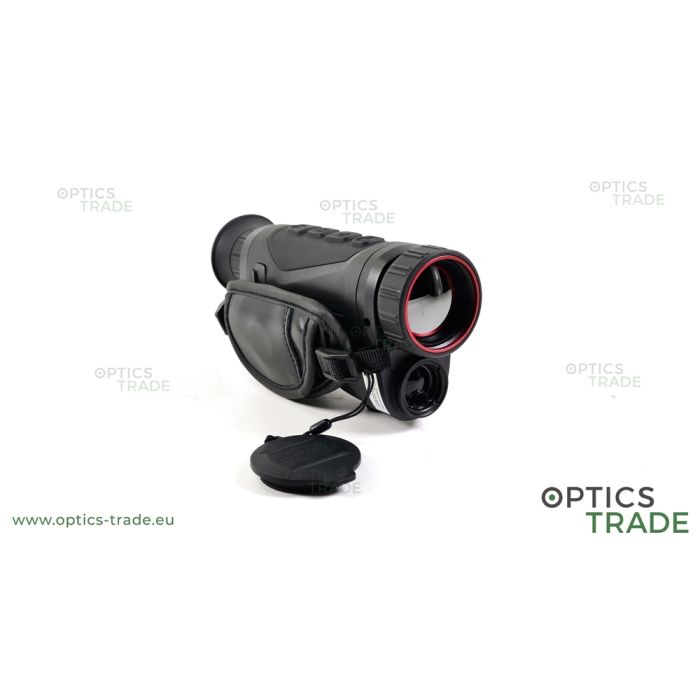

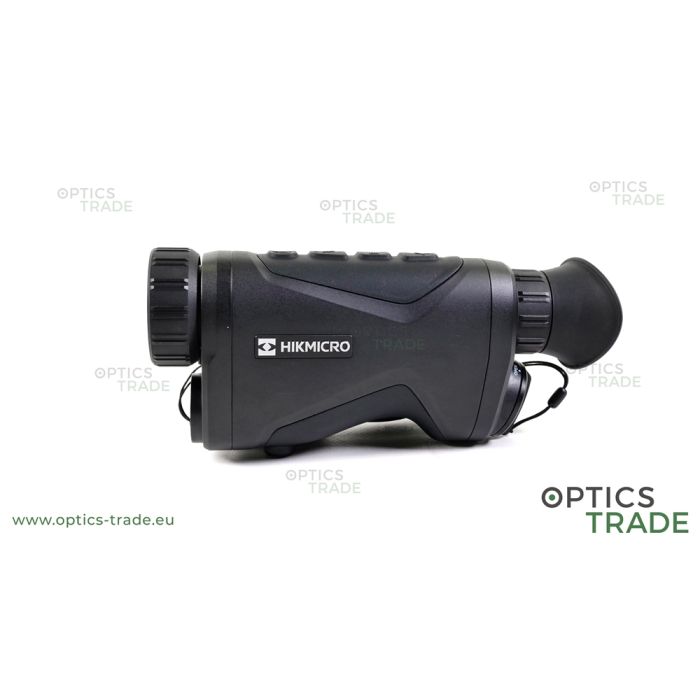

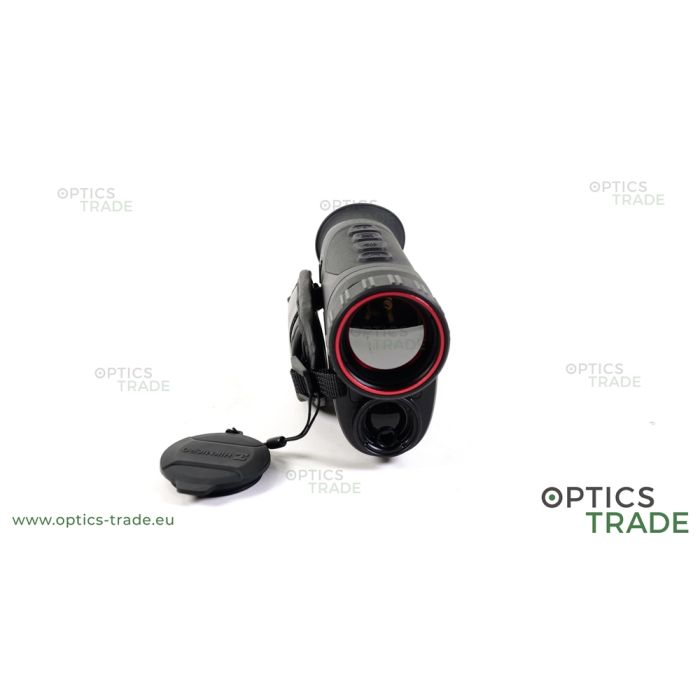

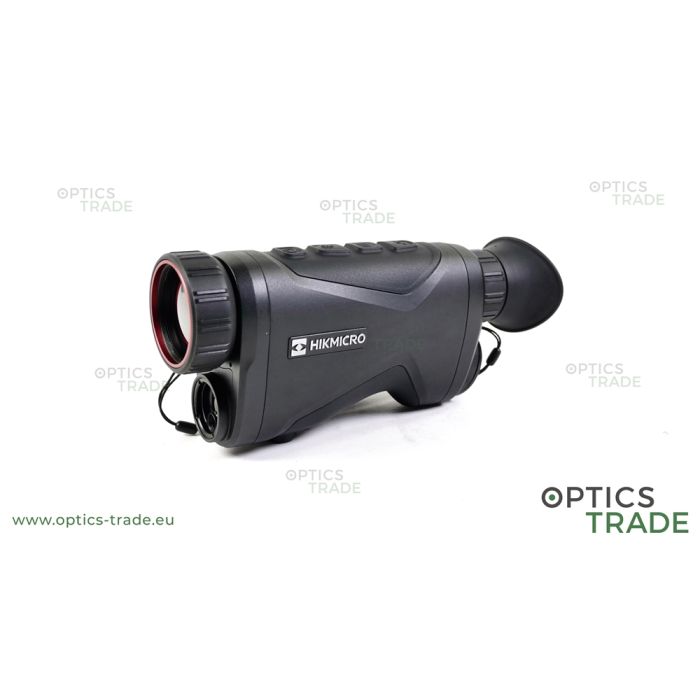

The HikMicro Condor CH35L is a compact and feature-rich thermal monocular designed for long-range observation in open terrain. Launched in late 2023, it combines a high-sensitivity VOx sensor, ergonomic housing, and an integrated laser rangefinder in a highly durable magnesium chassis. With a base magnification of 3.5x and up to 28x digital zoom, the CH35L is perfect for users needing clarity, accuracy, and comfort in a single handheld unit.

Key Features

Uncooled VOx thermal sensor with 384×288 resolution and 12μm pixel pitch
Thermal sensitivity (NETD) of <20mK for excellent performance in low contrast scenes
Detection range of up to 1800 meters
Integrated Laser Range Finder (LRF): 905nm wavelength, accurate from 10m to 1000m (±1m)
Fast startup time – under 4 seconds
50Hz refresh rate for smooth, real-time viewing
OLED display with 1024x768 resolution
4 color palettes: Black Hot, White Hot, Red Hot, and Fusion
Analog 3.5x magnification with 8x digital zoom (up to 28x total)
IP67 protection rating – waterproof and dustproof (1m for 30 min)
Shockproof and tripod-mountable
Auto screen-off based on motion orientation (standby mode)
Wi-Fi and USB-C connectivity; compatible with Sight App for smartphones
64GB internal memory for photo and video storage (1024x768 px recording)

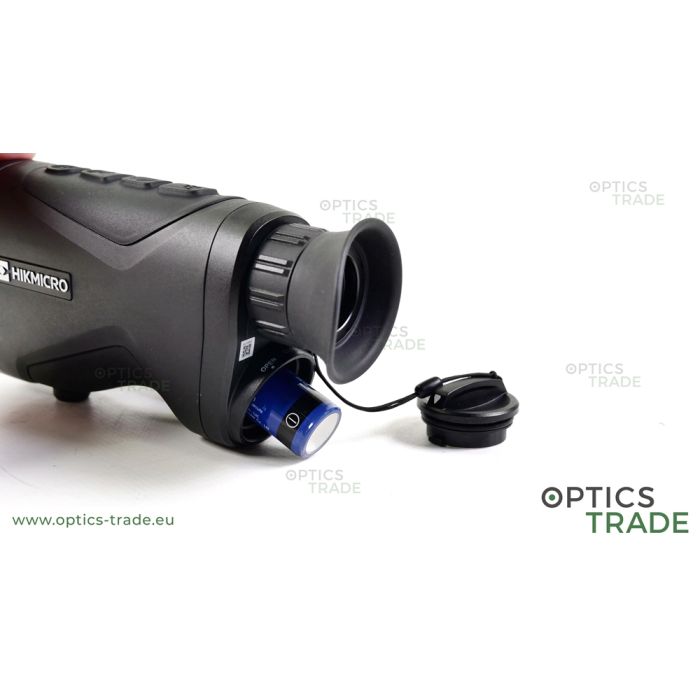

Battery life of approx. 2 hours per battery – 3x 18650 batteries included

About HikMicro

HikMicro is one of the fastest-growing companies in the thermal and night vision industry. Founded in 2016 and headquartered in China, HikMicro has quickly expanded into global markets with a wide range of outdoor and industrial imaging devices. The Condor series represents their most advanced monocular platform to date, merging cutting-edge sensor technology with smart features and user-friendly ergonomics.

What’s in the Box

HikMicro Condor CH35L Thermal Monocular
3x 18650 rechargeable batteries
Battery charger (high-quality)
USB-C cable for charging and data connection
Magnetic lens cover
Carrying strap
User manual
Protective packaging

Warranty

The HikMicro Condor CH35L is covered by a 2-year warranty and supported by a European service department for fast and reliable assistance.

Opća svojstva

Proizvođač	Hikmicro
Termalni jednogled	Hikmicro Condor
Izrađeno u	Kina
Proizvodi se od	2023
Jamstvo	2 godini
SKU	HM-CH35L

Optička svojstva

Varijabilno povećanje	Da
Povećanje.	3.50 x
Min. povećanje	3.50 x
Max. povećanje	28.00 x
Prilagođavanje dioptrije	-5/+3
Promjer leće	35.00 mm
Vidno polje	131.00 m/1000m
Vidno polje (u stupnjevima)	7.50 °
Min. vidno polje	97.00 m/1000m
Max. vidno polje	131.00 m/1000m
Udaljenost oka	15.00 mm
Najmanja udaljenost izoštrenja	3.50 m
Otvor objektiva	F 1.0
Domet detekcije	1,800.00 m
Optički zoom	Ne

Svojstva termalnog senzora

Tip sensora	VOx Uncooled
Thermal sensor resolution	384x288
Broj piksela na senzoru	0.11 MP
Udaljenost piksela	12.00 μm
NETD.	20.00 mK
Osvježavanje slike	50.00 Hz
Osvetljivost na temperaturu	20.00 mK

Svojstva zaslona

Tip prikaza	OLED
Rezolucija prikaza	1024×768
Broj piksela na displeju	0.79 MP

Mogućnosti snimanja

Zajam slike	Da
Zajam videa	Da
Video izlaz	Yes

Fizička svojstva

Dužina	184.90 mm
Širina	53.00 mm
Visina	87.80 mm
Težina	400.00 g
Materijal	Magnezij
Područje temperature	-30°C to +55°C
Tip baterije	Li-ion
Vrijeme rada	4.50 h
Boja	Crna

Posebne značajke

Otpornost na vodu	Da
Otpornost na vlaženje	Yes
Ugrađen daljinomjer	Ne
Stabilizacija slike	No
