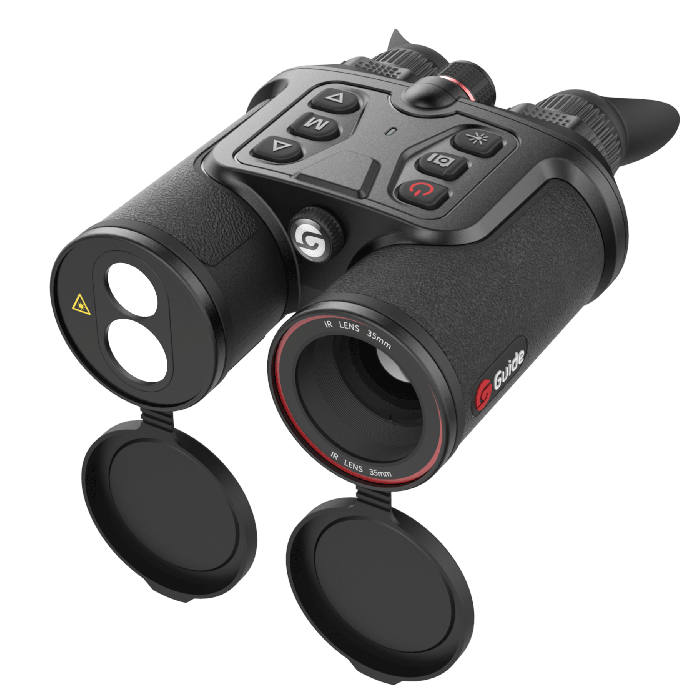

Guide TN430 Thermal Imaging LRF Binoculars

The Guide TN430 offers immersive, fatigue-free observation with its dual eyepieces and Full HD thermal imaging. Equipped with a 400×300 VOx sensor (17 µm pixel pitch; NETD ≤ 30 mK), it delivers rich thermal detail via 1024×768 OLED displays for both eyes. Its rugged build—IP66-rated and operational from –30 °C to +50 °C—makes it a reliable companion in demanding conditions.

Featuring a 35 mm f/1.2 lens, the TN430 provides a field of view of approximately 19 m × 15 m at 100 m. Zoom from 2.3× to 9.2× digitally and utilize Picture‑in‑Picture mode for precise framing.

About the Guide TN Series

The TN Series by Guide Sensmart is designed for users who need long-range thermal imaging in a binocular format for enhanced comfort and clarity. With dual eyepieces for reduced eye fatigue, integrated laser rangefinder, high-resolution OLED displays, and robust build quality, the TN series is made for prolonged observation in the field. These binoculars feature extensive onboard functions like GPS, gyroscope, Wi‑Fi, Bluetooth, and real-time image sharing, making them highly versatile tools for outdoor professionals and enthusiasts alike.

Key Features

• 400×300 VOx sensor (17 µm); NETD ≤ 30 mK
• 35 mm f/1.2 objective lens
• Field of view: ~19 m × 15 m at 100 m
• Digital magnification: 2.3×–9.2× with 13.8× eyepiece zoom
• Integrated laser rangefinder: up to 1,000 m
• Detection capability: ~1,300 m for human-sized targets
• Dual 0.39″ OLED displays (1024×768 @ 50 Hz)
• Color palettes: Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
• Wi‑Fi, GPS, compass, gyroscope, Bluetooth—Wi‑Fi app streaming
• Photo and video recording, 16 GB onboard memory
• Battery: 2× 18650 cells; ~5.5 h runtime
• IP66-rated; operational from –30 °C to +50 °C
• Ergonomic design, interpupillary adjustment (60–70 mm)
• Weight: ~860 g; Dimensions: 162 × 146 × 70 mm

About Guide Sensmart

Guide Sensmart (a division of Guide Infrared) develops advanced thermal imaging devices trusted worldwide. With a presence in over 70 countries and more than 20 years of experience, Guide continues to lead innovation in outdoor and professional thermal imaging solutions.

What’s in the Box

• Guide TN430 Thermal Imaging Binoculars with Laser Rangefinder
• 2× Detachable Eye Cups
• 2× 18650 Rechargeable Batteries & Charger
• 5 V/2 A Power Adapter (US, UK, EU, AU)
• Lens Cap, Wrist Strap, Carry Bag
• USB‑C Cable, Micro‑HDMI Cable
• Quick Start Guide & Warranty Card

Warranty

The TN430 is covered by a 2-year manufacturer warranty, with extended coverage of up to 10 years for the thermal sensor when purchased through authorized dealers.
