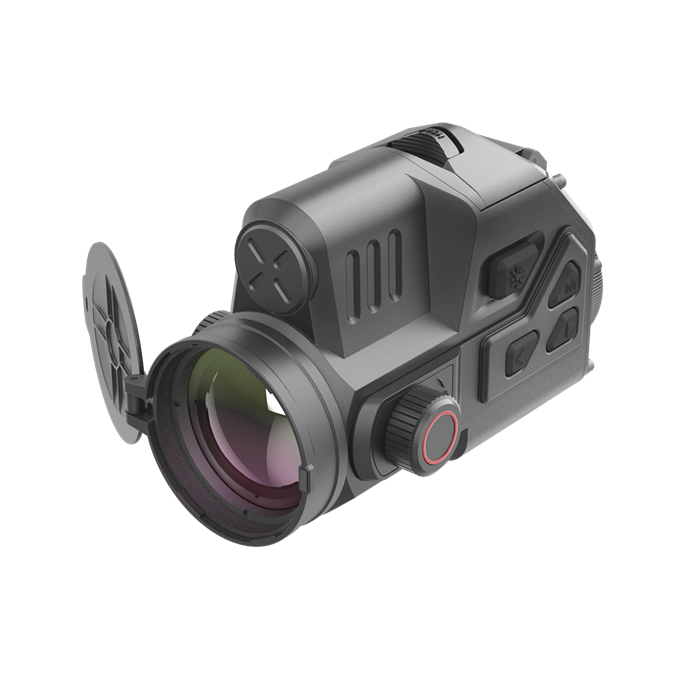

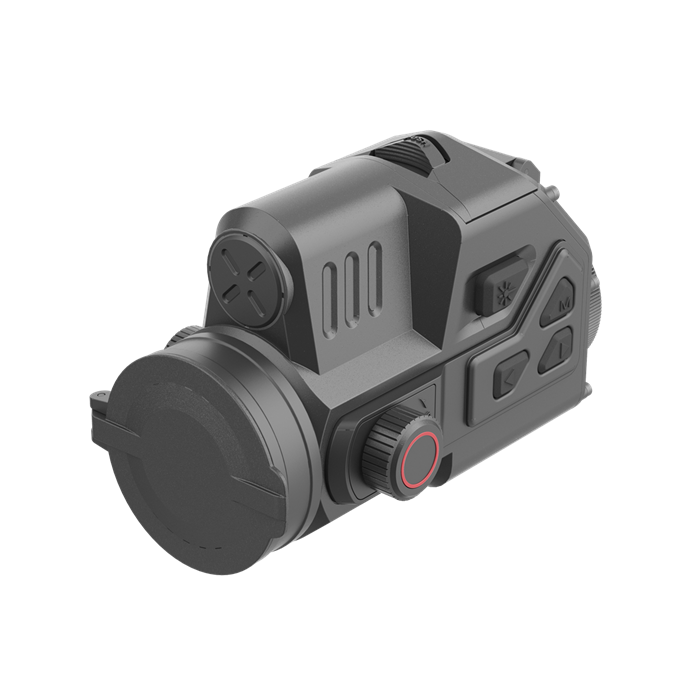

Guide TB650 PRO

The Guide TB 650 Pro Thermal Clip‑On is a high-end clip-on thermal attachment engineered to transform any daytime riflescope into a premium thermal optic. Featuring a 640×512 VOx sensor with 12 μm pixel pitch, wide 50 mm F1.0 lens, and Full‑HD AMOLED display housed in rugged magnesium alloy, the TB 650 Pro offers long-range detection and durability for demanding hunting and tactical applications.

Key Features

• Thermal Sensor: 640×512 VOx uncooled detector, 12 μm pixel pitch
• NETD: ≤ 20 mK for sharp contrast in low-thermal environments
• Frame Rate: 50 Hz for smooth imaging
• Objective Lens: 50 mm, F1.0 Germanium with manual focus
• Field of View: 8.8° × 7.0° (~15 × 12 m @ 100 m)
• Magnification: 1× optical
• Detection Range: Up to ~2600 m (≈2800 yd) for human-sized targets
• Display: 0.39″ AMOLED, 1920 × 1080 resolution
• Recording: Photo, video & audio; 64 GB internal memory
• Connectivity: Wi‑Fi (2.4 GHz/5 GHz), Bluetooth, USB‑C
• Battery: 2× replaceable 18650 batteries offering up to ~9 h runtime
• Durability: IP68‑rated, 1000 G shock‑resistant, 1 m drop-proof
• Operating Temp: –20 °C to +50 °C
• Weight & Size: 582 g; 161 × 89 × 97 mm

About Guide Sensmart

Guide Sensmart is a flagship brand of Guide Infrared (est. 1999), producing cutting‑edge thermal optics for professional and outdoor applications. The TB 650 Pro continues their legacy—melding high-end sensor technology, robust build quality, and ease of use into a top-tier clip‑on system.

What’s in the Box

• Guide TB 650 Pro Thermal Clip‑On
• 2× 18650 rechargeable batteries
• Battery charger + international 5 V/2 A adapter (US/EU/UK/AU)
• USB‑C cable
• Quick‑start guide & warranty card

Warranty

Covered by a limited 2‑year manufacturer warranty, with full support via Guide Sensmart's global service network.
