EAW Steel Picatinny rail, Bergara B14 SA

About Picatinny Rail

The Picatinny rail system is engineered with slots spaced precisely 5.23 mm apart, ensuring consistent and versatile usage along its entire length. This design allows for easy mounting and universal compatibility, meaning accessories designed for a Picatinny rail will fit perfectly, regardless of the manufacturer or production date. Valued for its affordability, durability, and reliability, the Picatinny rail has become a preferred choice among professionals and military personnel, dominating the scope mounts market in recent years.

The Picatinny design represents a significant improvement over the older Weaver standard. While the Weaver system has only a few predetermined slots, the Picatinny rail features continuous slots across its surface, offering greater flexibility for mounting devices at any location. Additionally, the slots on a Weaver rail are narrower, at 3.8 mm, which means scope mounts designed for Weaver rails can fit on a Picatinny rail. However, mounts specifically made for Picatinny rails do not fit on Weaver rails due to the size difference of recoil stoppers. This compatibility and versatility position the Picatinny rail as a superior mounting solution for various applications.

About the EAW

Founded in 1919, EAW is Germany's oldest active manufacturer of scope mounts and is globally recognized for its innovative, high-quality scope mounts. The company offers an array of Picatinny rails, meticulously designed to ensure a seamless integration with various rifle models. These rails provide a secure and precise fit, optimizing the positioning of optical devices. Renowned for their durability and reliability, EAW's Picatinny rails are highly favored by both professionals and firearms enthusiasts. Despite their superior quality, these mounts come at a higher cost.

About the Bergara

Bergara originates from the town of Bergara, Spain, and is recognized globally as one of the finest barrel manufacturers. This reputation is largely thanks to the influence of Ed Shilen, a legendary U.S. barrel designer who helped set up Bergara's factory to produce high-quality barrels at low production costs. Bergara manufactures a variety of firearm designs and outdoor equipment, quickly gaining market presence due to their excellent quality and affordability.

About the B14 SA

The Bergara B14 SA (Short Action) rifle utilizes the renowned Remington 700 action, offering both short and long action configurations. This bolt action rifle features a push-feed style mechanism and two locking lugs on the bolt. The trigger mechanism is akin to that of the Remington, with adjustable weight and pull. Depending on the caliber, barrel lengths are available in 51 cm (20 inches), 56 cm (22 inches), or 61 cm (24 inches). The receiver is precisely drilled and tapped for mounting scopes, equipped with two holes at both the front and rear. Notably, the rear mounting surface on the receiver is positioned lower than the front, facilitating various optical setups.

Variants

Bergara B14 SA is available in folowing variants:

• Bergara B14 SA Timber
• Bergara B14 SA Sporter
• Bergara B14 SA Sporter Varmint
• Bergara B14 SA Ridge
• Bergara B14 SA Hunter
• Bergara B14 SA BMP
• Bergara B14 SA HMR

Calibres

Bergara B14 SA is chambered for the following calibres:

• .243 Win
• .308 Win
• 6.5 Creedmoor
• 7mm-08 Rem

Design of the Rail

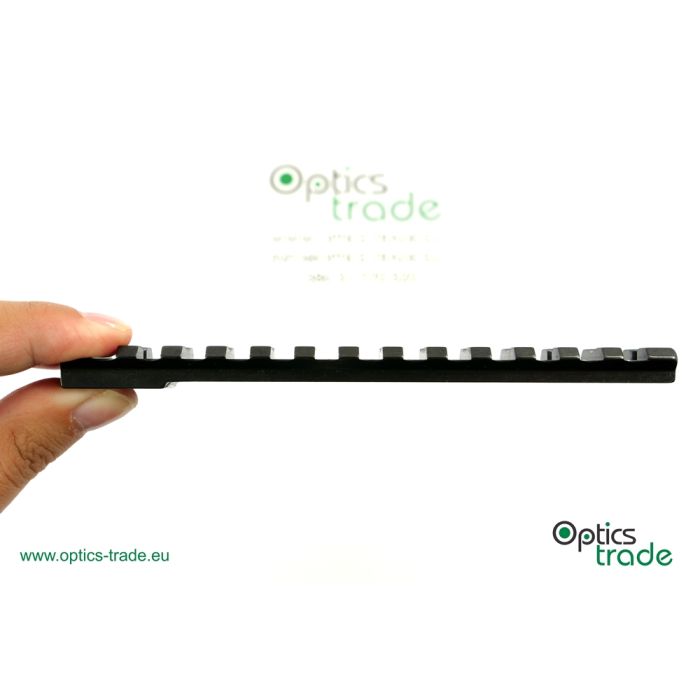

The EAW Steel Picatinny rail, Bergara B14 SA, is crafted from steel, providing exceptional hardness and durability compared to aluminum. This ensures a higher degree of repeatability with minimal wear over time. The rail features 13 slots and 4 mounting holes, all secured with 6-48 threading. A unique central channel allows the simultaneous use of the rifle's iron sights, providing a reliable backup option without needing to remove the rail when there is nothing mounted on it. This Picatinny rail is firmly attached to the rifle with 4 screws, ensuring a secure and stable mount.

Mounting Dimensions

• A=21.9mm
• B=92.3mm
• C=15.3mm
• R1=51mm
• R2=17mm
• BHU=2.9mm

This rail can also be mounted on:

Usually, a Picatinny rail can be mounted on multiple different rifles if they share the same mounting surface, which we commonly refer to as the mounting standard. The EAW Steel Picatinny rail, Bergara B14 SA can be mounted on the following rifles, which share the same mounting standard:

• Bergara Premier SA
• CZ 600 Lux (Medium)
• CZ 600 Range (Medium)
• HS Precision SA
• McMillan G30 SA
• Remington 40-XB
• Remington 78 SA
• Remington 700 SA
• Remington 722
• Strasser RS 700

Mounting Instructions

Clean the rifle's receiver thoroughly with a cleaning fluid, such as acetone, to remove all stains, grease, and oil. Once the surface is clean and dry, verify that the screws fit both the rail and the receiver holes. Before mounting the rail, apply a minimal amount of thread-locking fluid (278 or 648) to the screws, avoiding any contact with the mounting holes. Carefully clean any excess fluid around the rail using the cleaning fluid. Using a torque driver, tighten the screws to the appropriate torque (up to 3 Nm/26.5 in-lbs). If you require any mounting tools, you can find them on our Rifle Scope Mounting Tools page.

What's in the box?

Each package comes complete with one steel rail and 4 screws to securely attach the rail to your firearm.

Warranty

This product comes with a 30-year warranty.
