Contessa Picatinny Rail for Sauer 202 STD EU, extended for NV

About Picatinny Rail

The Picatinny rail system features slots spaced at precise 5.23 mm intervals, enabling consistent and versatile use along its entire length. This system is designed for ease of mounting and is universally compatible; accessories designed for a Picatinny rail will fit seamlessly, irrespective of the manufacturer or the date of production. Known for its affordability, durability, and reliability, the Picatinny rail is a popular choice among professionals and military personnel, making it a dominant player in the scope mounts market in recent years.
The Picatinny design marks a significant advancement over the older Weaver standard. Unlike the Weaver system, which offers only a few predetermined slots, the Picatinny rail boasts continuous slots across its surface. This feature provides the flexibility to mount devices at any preferred location. Additionally, the slots on a Weaver rail are narrower, at 3.8 mm, allowing mounts designed for Weaver rails to fit on a Picatinny rail. However, mounts specifically made for Picatinny rails do not fit on Weaver rails due to the size difference of recoil stoppers. This compatibility and versatility make the Picatinny rail a superior mounting solution in various applications.

About the Contessa

Contessa, an Italian manufacturer renowned for its high-quality scope mounts, combines decades of experience with advanced 3D technology and precision handcrafting. Recognized internationally, its mounts are not only functional but also aesthetically pleasing, featuring soft, rounded edges. Contessa Picatinny rails are machined to strict tolerances, and  feature one of the best fit and finish. Each rail bears the distinctive golden Contessa logo, symbolizing quality and craftsmanship.

About the Sauer

J.P. Sauer & Sohn, established in 1751 in Suhl, Germany, is the oldest firearms manufacturer in Germany. Originally focused on military contracts, the company adapted to civilian markets in the late 19th century, introducing innovative hunting rifles. Post-WWI, it diversified, even producing typewriters, to survive economic hardships. After WWII, under Soviet occupation, it was stripped of its original name but was later restored, and in 1951, re-established in West Germany as a dedicated hunting rifles producer​​.

About the 202 Standard

The Sauer 202 Standard rifle is a German-produced bolt action rifle with a full alloy or steel receiver that houses a bolt with three forward-locking lugs. This configuration allows for a short bolt lift angle of 60°, ensuring a fast bolt throw and smooth operation. It is equipped with a take-down option for swift barrel changes. The rifle features a noiseless safety catch located at the rear of the action, a single-set trigger mechanism, and a three-round magazine. The Sauer 202 Standard model receivers have four holes for mounting scopes—two at the front and two at the rear. Possible barrel lengths for this model are 510 mm (20-inch), 560 mm (22-inch), and 600 mm (22.6-inch)​​.

Calibres

Sauer 202 Standard can be chambered for the following calibres:

• .22-250 Rem.
• .243 Win.
• 6.5x55
• 6.5x57
• .270 Win.
• 7x64
• .308 Win.
• .30-06 Spr.
• 8x57 JS
• 9.3x62

Design of the Rail

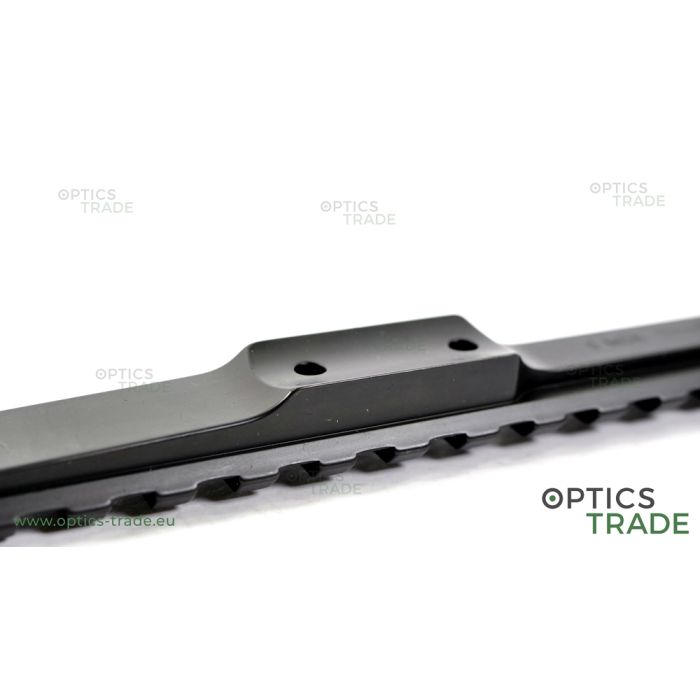

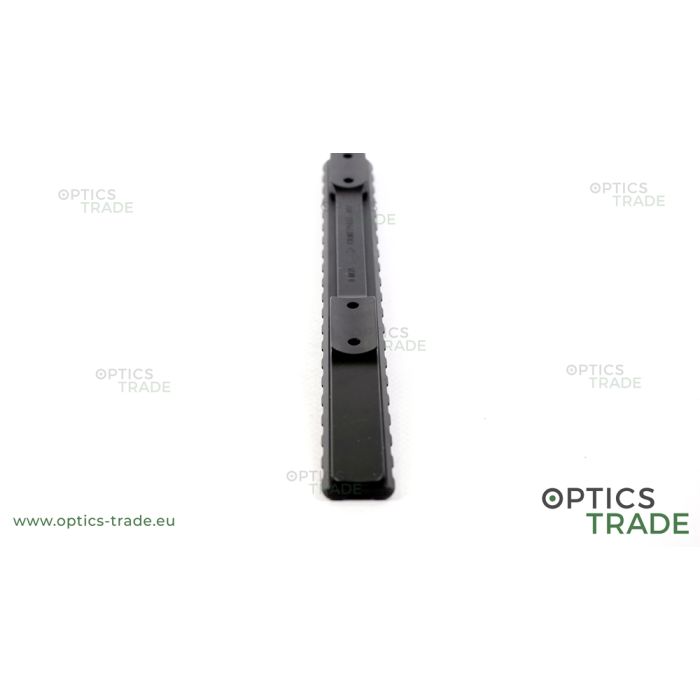

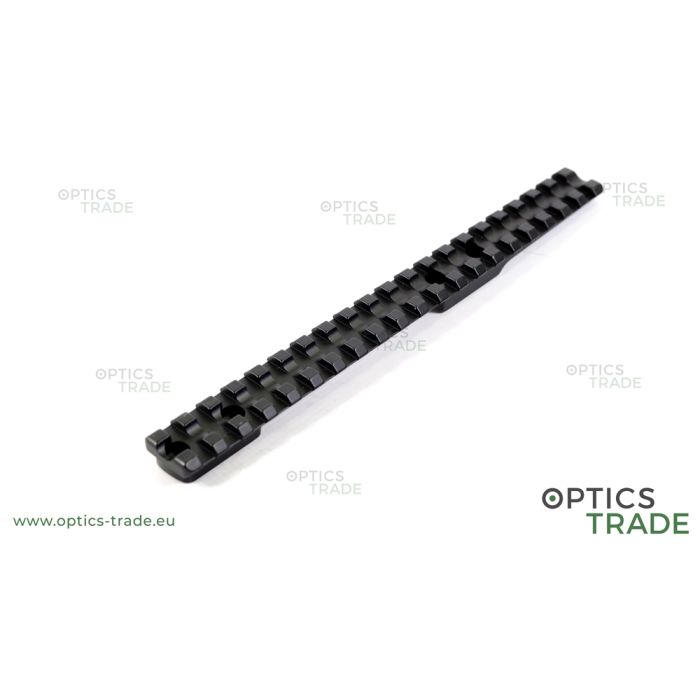

The Contessa Picatinny Rail for Sauer 202 STD EU, extended for NV is constructed from steel, known for its superior hardness and durability compared to aluminum, ensures a higher degree of repeatability with less wear over time. The rail extends back towards the shooter because night vision devices need less eye relief and must be positioned further back on the firearm. The picatinny rail features 20 slots and 4 mounting holes, all secured with 6-48 threading. A distinct central canal on the rail allows for the concurrent use of the rifle's iron sights, offering a reliable backup sighting solution without the need to remove the picatinny rail when there is nothing mounted on it. This picatinny rail is attached to the rifle with four screws.

Mounting Dimensions

• A=21.9mm
• B=94.2mm
• C=21.9mm
• BHU=1.5mm
• R1=17.4mm
• R2=17.0mm

Mounting Instructions

Remove all the stains (grease, oil etc.) from the rifle's receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 3 Nm/26.5 in-lbs).
If you require any mounting tools, you can find them on our Rifle Scope Mounting Tools page.

What's in the box?

Each package comes complete with one steel rail, a sturdy wrench for easy installation, and four screws to securely attach the rail to your firearm.

Warranty

This product comes with a 30-year warranty.
