Athlon Heras SPR 4-20x50

• Precision Zero Stop: The exposed elevation turret features Athlon's precision zero stop system, so after dialling for a longer shot the turret returns to the original zero with a firm, positive stop – no counting clicks back.
• Locking Windage Turret: The windage turret is pulled up to dial and pushed down to lock, preventing accidental adjustments when the rifle is carried, slung or placed in a gun case.
• 4–20× Magnification with Parallax Down to 10 Yards: The 5× zoom ratio and side focus parallax adjustment from 10 yards (9.1 m) to infinity make the riflescope suitable for airgun and rimfire shooting at short range as well as precise mid- and long-range shots with centrefire rifles.
• Etched Glass Reticle in MOA or MIL: The AAGR2 second focal plane reticle is available in MOA or MIL, each matched to turrets with the same unit, so reticle holds and turret adjustments use the same measurement system.

ABOUT THE ATHLON HERAS SPR SERIES

The Athlon Heras SPR series is Athlon's modern take on the hunting riflescope. It combines the familiar layout of a hunting scope with features usually found on tactical and long-range optics, such as locking turrets, a precision zero stop and a choice of second focal plane (SFP) and first focal plane (FFP) reticles in MOA or MIL.

The series covers a wide range of applications. The 2-12x42 and 4-20x50 models use a 1-inch main tube and non-illuminated AAGR1 and AAGR2 reticles, while the 6-24x56 models are built on a 30 mm tube and offer illuminated APLR and APRS reticles in both SFP and FFP. The 15-60x56 with the BLR2 reticle is intended for long-range shooting. With a minimum parallax setting of 10 yards, the Heras SPR range is also well suited to airguns and small-bore rifles.

All models are made from aircraft-grade aluminum with one-piece tube construction and are argon purged, waterproof, fogproof and shockproof. Advanced fully multi-coated lenses provide good light transmission, brightness and true colour rendition for hunting and target shooting alike.

ABOUT THE MODEL (ATHLON HERAS SPR 4-20X50)

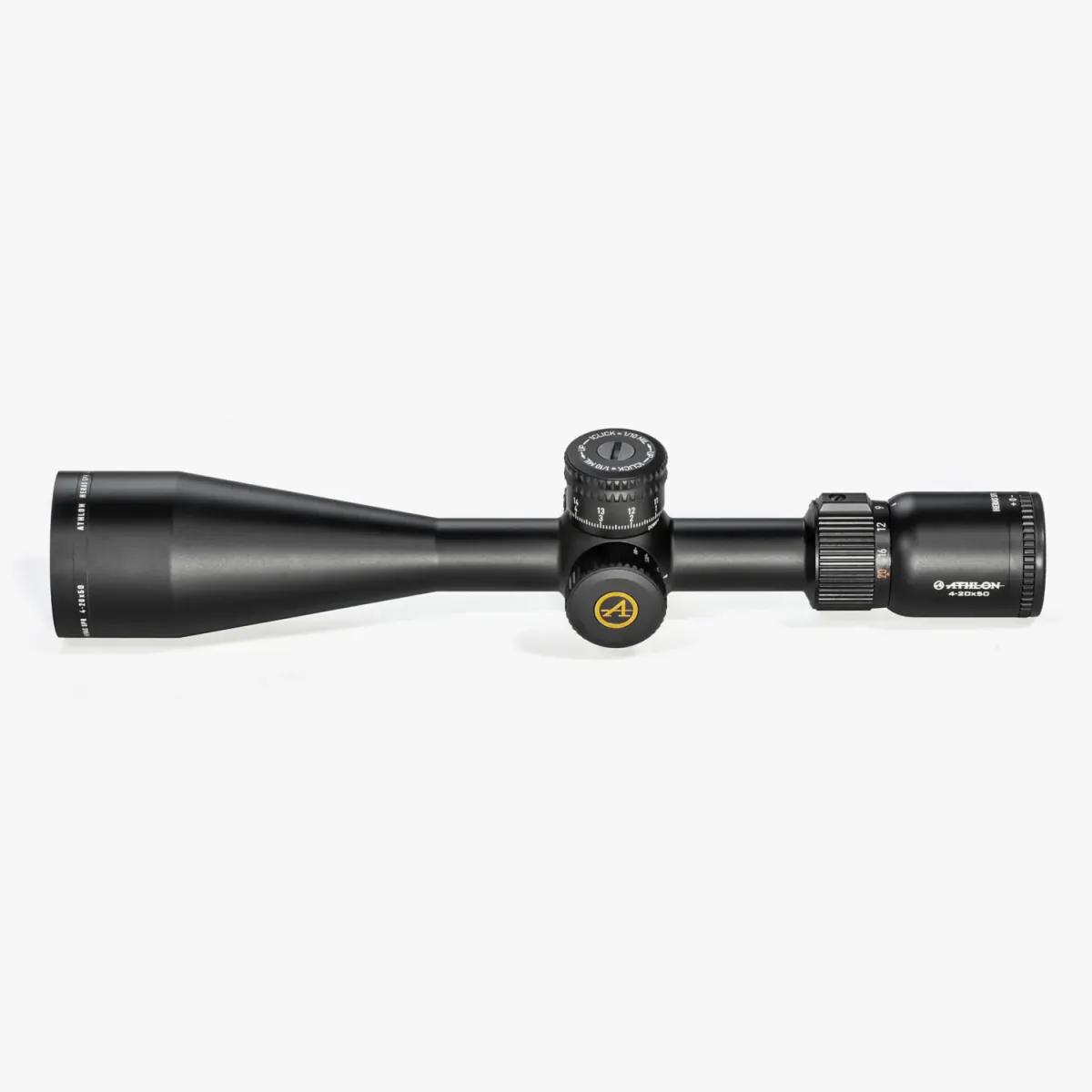

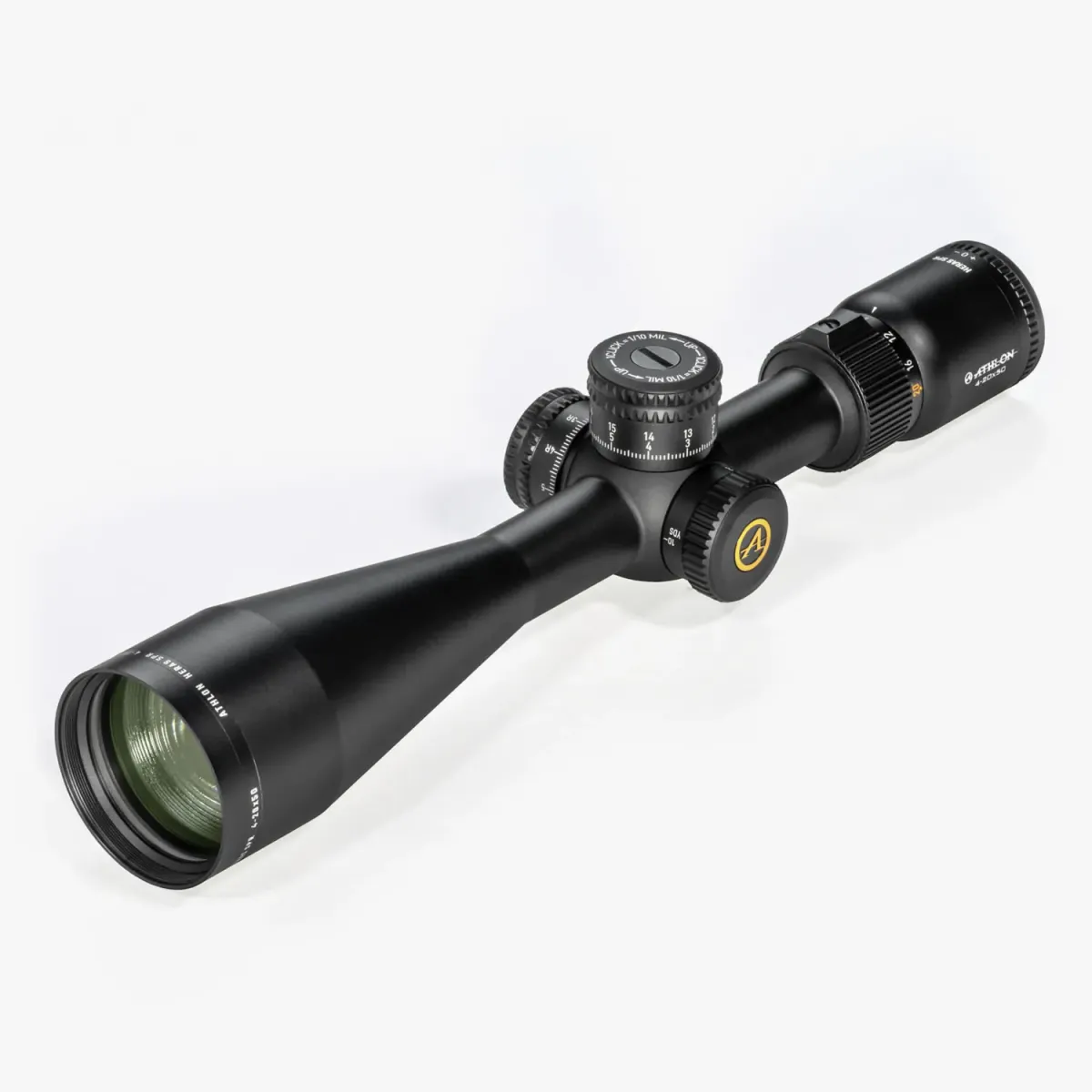

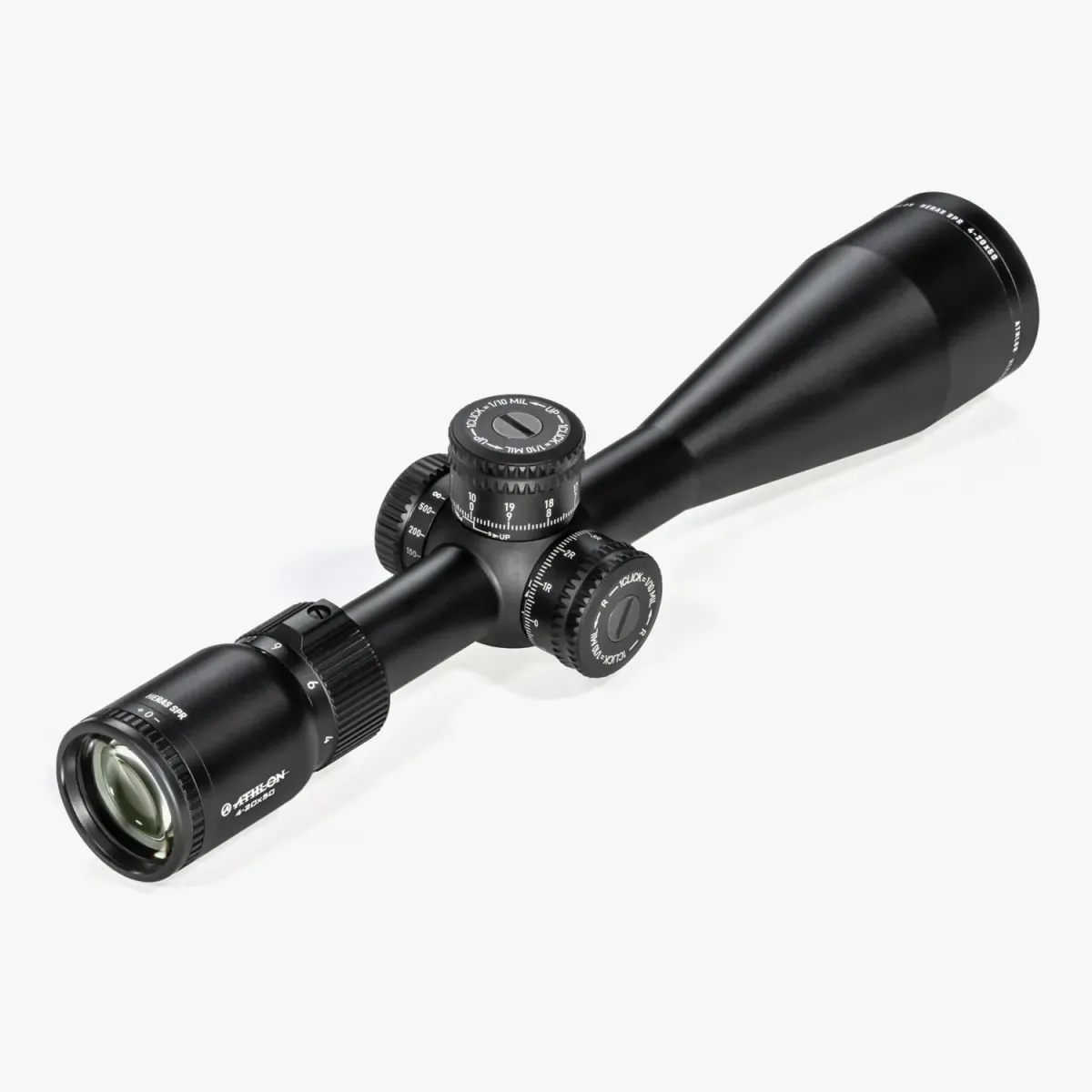

The Athlon Heras SPR 4-20x50 extends the Heras SPR concept to higher magnifications for mid- and long-range shooting. The 5× zoom ratio starts at 4×, where the field of view of 9.3 m at 100 m still allows targets to be located quickly, and reaches 20× for precise shot placement on small targets and game at longer distances. The 50 mm objective lens gathers more light than the 42 mm model, which helps at dawn and dusk, while the 1-inch tube keeps the riflescope relatively slim at 338 mm in length.

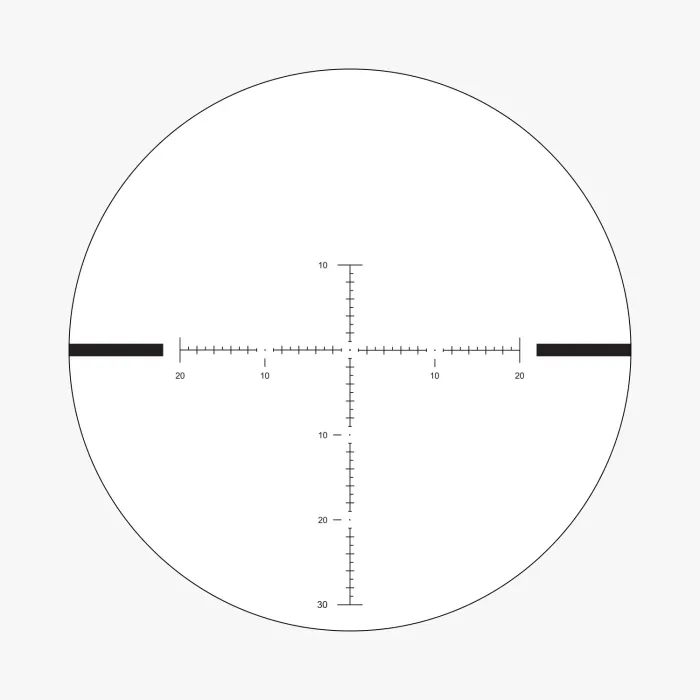

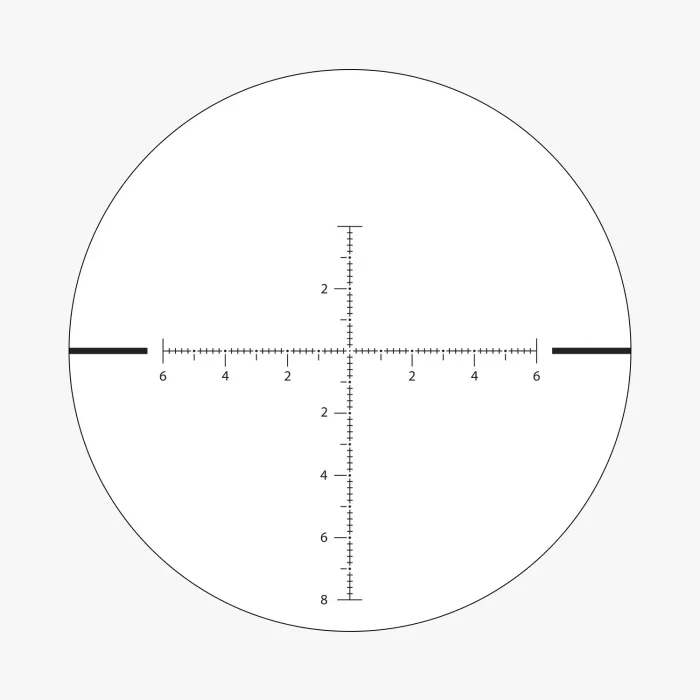

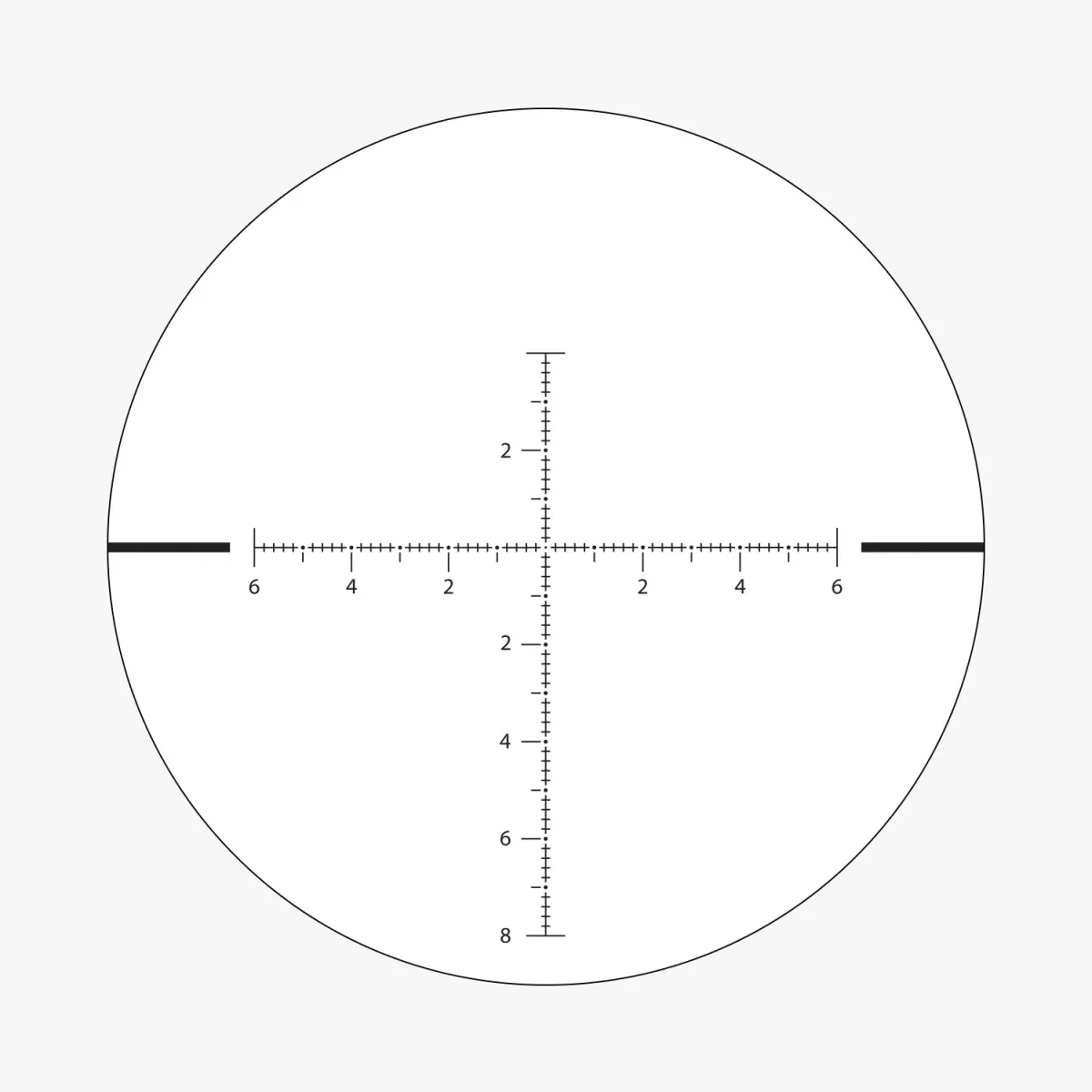

The etched glass AAGR2 reticle sits in the second focal plane, so it stays the same size at every magnification. The MOA version has a 0.2 MOA floating centre dot, 1 MOA hash marks and floating dots every 10 MOA. The MIL version has a 0.05 mil floating centre dot, 0.2 mil hash marks with dots at every 1 mil, and reference marks extending 6 mil to each side, 8 mil down and 4 mil up. The fine centre dots obstruct very little of small targets at distance. Both reticles are designed for precise mid- and long-range shooting and support holdovers, wind corrections, leads on moving targets and ranging, with subtensions valid at 20×.

The exposed elevation turret with precision zero stop and the locking windage turret adjust in 0.25 MOA clicks with 25 MOA per rotation and 70 MOA of total travel on the MOA version, or 0.1 MIL clicks with 10 MIL per rotation and 21 MIL of total travel on the MIL version. A fast focus eyepiece allows quick reticle focusing, and a high-precision erector system supports repeatable turret adjustments.

ABOUT ATHLON

Athlon Optics is an American sports optics company headquartered in Lenexa, Kansas. Built on a love of the outdoors, the company focuses on delivering quality optics at a competitive price. Athlon combines its own engineering capabilities with manufacturing partners that operate vertically integrated facilities with cleanroom assembly, high-precision CNC machining and advanced lens polishing and coating equipment. A streamlined supply chain allows these cost savings to be passed on to the customer.

All Athlon optical products are tested for waterproofing, fogproofing and shockproofing before they are shipped. The product range covers riflescopes, thermal imaging scopes and clip-ons, binoculars, spotting scopes, red dot and prism sights, laser rangefinders, as well as tripods and riflescope mounts.

MAIN FEATURES

• Magnification: 4–20×
• Objective Lens Diameter: 50 mm
• Main Tube Diameter: 1 inch (25.4 mm)
• Reticle: AAGR2 SFP MOA / AAGR2 SFP MIL (etched glass)
• Reticle Position: Second Focal Plane (SFP)
• Illumination: No
• Reticle Subtension Valid At: 20×
• Turrets: Exposed elevation with zero stop / locking windage
• Click Value: 0.25 MOA (MOA) / 0.1 MIL (MIL)
• Adjustment per Rotation: 25 MOA / 10 MIL
• Elevation Adjustment Range: 70 MOA / 21 MIL
• Windage Adjustment Range: 70 MOA / 21 MIL
• Parallax Adjustment: Side focus, 10 yd (9.1 m) to infinity
• Eyepiece: Fast focus
• Eye Relief: 91 mm (3.6")
• Field of View: 9.3–1.9 m @ 100 m (27.9–5.6 ft @ 100 yd)
• Length: 338 mm (13.3")
• Weight: 709 g (25 oz)
• Tube Construction: One-piece aircraft-grade aluminum
• Lens Coatings: Advanced fully multi-coated
• Purging Gas: Argon
• Waterproof / Fogproof / Shockproof: Yes

WARRANTY

The Athlon Heras SPR 4-20x50 riflescope is covered by a 10-year warranty.

IN THE BOX

• Athlon Heras SPR 4-20x50 riflescope
