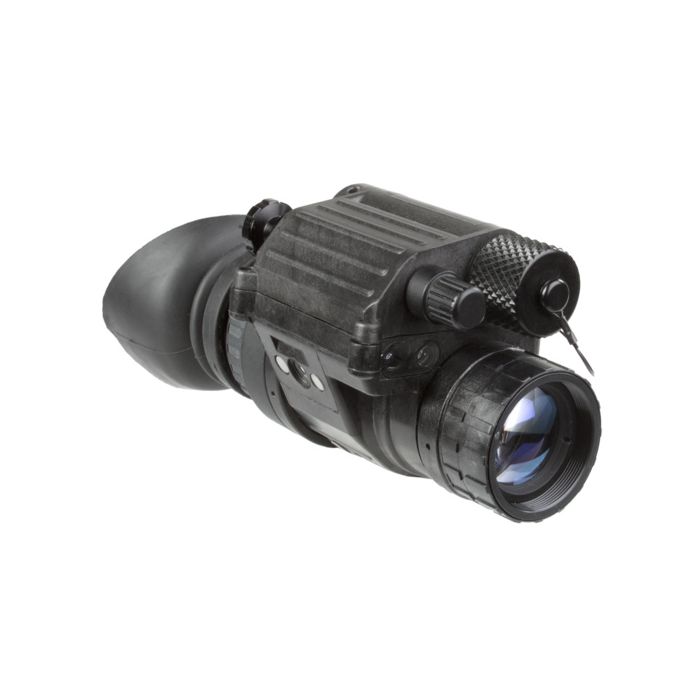

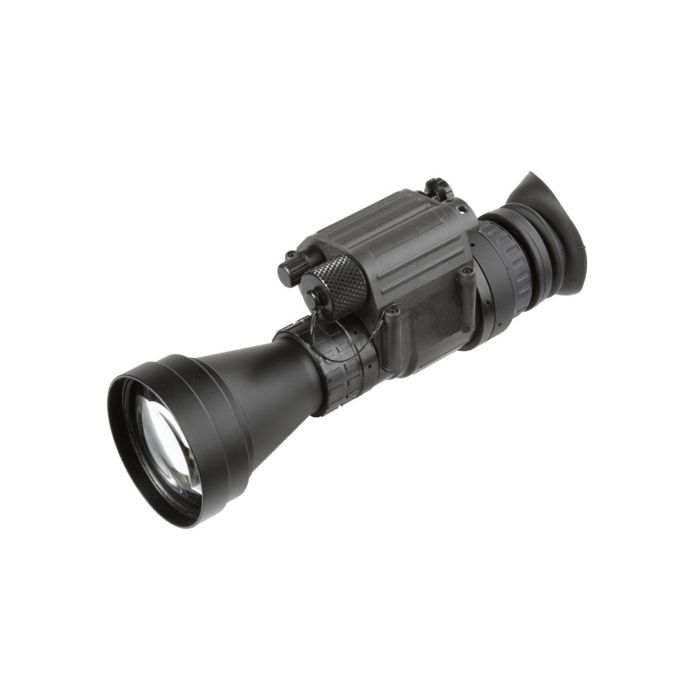

AGM PVS-14

1. Advanced Analog Night Vision: The AGM PVS-14 is a highly versatile and proven Gen 3 analog night vision monocular, designed to amplify ambient light and near-infrared (NIR) wavelengths (700-1000 nm). This real-time, lag-free image makes it an ideal tool for low-light observation, navigation, and tactical operations, allowing users to see clearly in conditions from starlight to complete darkness (with IR illuminator).

2. Rugged and Reliable Construction: Crafted with a durable, rubber-armored aluminum housing, the PVS-14 is built to withstand harsh conditions. It features an IP67 waterproof rating, ensuring reliable performance even when submerged. The multi-coated lenses reduce flare and maximize light transmission, while the nitrogen-purged internal components prevent fogging, maintaining optical clarity in varying environments.

3. Superior Gen 3 Performance: Utilizing a high-performance Gallium Arsenide (GaAs) photocathode, the Gen 3 image intensifier tube delivers 50,000x+ gain, providing exceptional resolution and clarity in extremely low light. Its auto-gating feature protects the tube from sudden flashes of bright light, enhancing durability and operational flexibility, though users must be vigilant to protect the device from prolonged daylight exposure.

4. User-Friendly and Adaptable: This monocular is designed for intuitive operation, featuring manual gain control to adjust image brightness and a bright light cut-off safety feature. Its compact and lightweight design (350g) makes it ideal for prolonged use, whether handheld, head-mounted for hands-free navigation, or helmet-mounted for tactical applications. An integrated LED indicator alerts the user to low battery or IR activation.

ABOUT THE AGM PVS-14

The AGM PVS-14 stands out as a highly versatile and iconic analog night vision monocular, a military-grade device that has earned its reputation as a standard for nocturnal operations. Unlike other models in its class, the PVS-14 excels in providing exceptional performance in diverse low-light scenarios, amplifying available ambient light, including near-infrared (NIR) wavelengths, to deliver a clear, real-time image. This makes it an indispensable tool for hunters, law enforcement, and tactical professionals who require uncompromising visibility during nighttime missions. Equipped with an advanced Gen 3 image intensifier tube, it offers superior resolution and light gain, allowing users to discern details even in extremely dim conditions. While capable of passive amplification from starlight or moonlight, an integrated IR illuminator is crucial for seeing in absolute darkness. It's imperative to remember that exposure to bright light can permanently damage analog NV devices, so the PVS-14 must always be used in low-light conditions and stored with protective caps.

ABOUT AGM GLOBAL VISION

AGM Global Vision, based in the USA, is a developer and distributor of a wide range of night vision and thermal imaging equipment. Established with a commitment to tactical excellence, AGM Global Vision is known for producing robust, reliable, and high-performance optics designed to meet the demanding requirements of military, law enforcement, and outdoor enthusiasts. The company emphasizes cutting-edge technology and rigorous quality control, ensuring that their products, including their popular night vision monoculars, deliver consistent and dependable results in the field. Their philosophy centers on providing users with a crucial advantage in the dark, leveraging expertise in image intensification and thermal sensing.

MAIN FEATURES

• Night Vision Technology: Analog, Gen 3 (Green Phosphor)

• Image Intensifier Tube: High-performance Gen 3 image intensifier tube for exceptional clarity and light amplification.

• Magnification: 1x (unity magnification for natural field of view)

• Lens System: 26mm f/1.2

• Field of View: 40°

• Diopter Adjustment: -6 to +4 dpt

• Focus Range: 0.25 m to infinity

• Eye Relief: 25 mm

• Resolution: 64-72 lp/mm (typical for Gen 3)

• Signal-to-Noise Ratio: 24-30 (typical for Gen 3)

• Photocathode Material: Gallium Arsenide (GaAs)

• IR Illuminator: Built-in, short-range flood infrared illuminator (850nm)

• Battery Type: One AA Alkaline or 3V CR123A Lithium (adapter included)

• Battery Life: Up to 50 hours (CR123A), up to 30 hours (AA)

• Operating Temperature: -51°C to +49°C (-60°F to +120°F)

• Storage Temperature: -51°C to +85°C (-60°F to +185°F)

• Environmental Rating: IP67 (waterproof, submergible up to 1 meter for 30 minutes)

• Dimensions: 114 x 69 x 63 mm (4.5 x 2.7 x 2.5 in)

• Weight: 350 g (0.77 lbs)

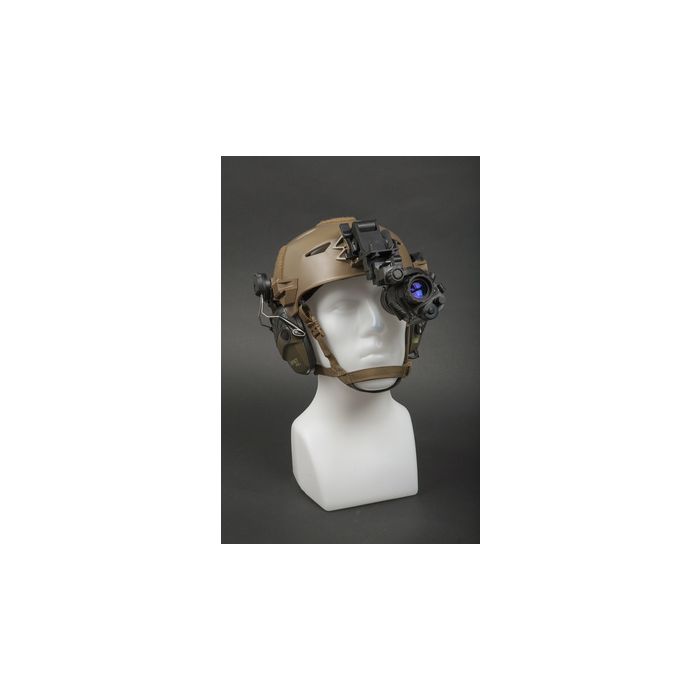

• Mounting Compatibility: Designed for hands-free use with head/helmet mounts (J-arm adapter included), compatible with various weapon platforms via rail mounts.

WARRANTY

This product is covered by a 3-year global warranty that includes defects in materials and manufacturing under normal use.

IN THE BOX

• AGM PVS-14 Night Vision Monocular

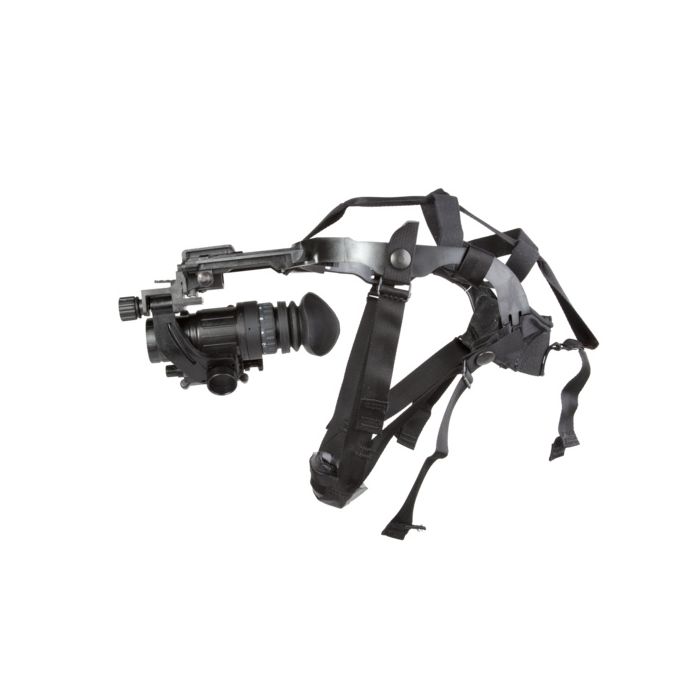

• Head Mount Assembly

• Brow Pads

• Helmet/Head Mount Adapter (J-Arm)

• Sacrificial Window

• Demist Shield

• Daylight Filter/Protective Cap

• Shoulder Strap

• Soft Carrying Case

• Lens Tissue

• Operating Manual
